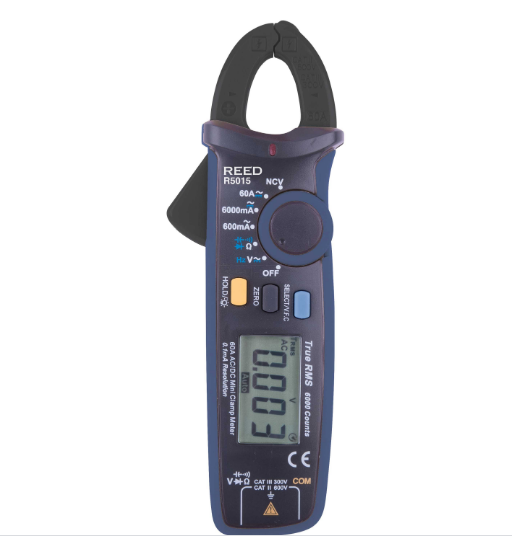

REED R5015 60A True RMS AC/DC Clamp Meter with NCV

Name: REED R5015 60A True RMS AC/DC Clamp Meter with NCV
Brand: REED Instruments
SKU: R5015
Availability: OutOfStock

Part Number : R5015

This compact auto-ranging mA clamp meter is capable of measuring AC/DC current/voltage, resistance and capacitance. The R5015 features high resolution AC/DC mA readings on a 6000-count backlit LCD display, diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Auto shut-off	Yes (after 15 mins)
Backlit Display	Yes
Dimensions	6.9x 2.4 x 1.3" (175 x 60 x 33.5 mm)
Display Hold	Yes
Display	6,000 count LCD display
Jaw Opening	0.67" (17mm)
Low Battery Indicator	Yes
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	2 AAA Batteries
Product Certifications	CE, ETL, RoHS
Storage Temperature	14 to 122°F (-10 to 50°C)
Weight	6oz (170g)

Measures AC/DC current/voltage, resistance and capacitance
High resolution 0.1 mA (AC) and 1 mA (DC)
True RMS for AC current/voltage
6000-count backlit LCD display
Built-in non-contact voltage detector with LED indicator
V.F.C (variable frequency control) mode for air-conditioner maintenance and diagnostics
Low battery and over range indicators
Diode test and continuity check functions
Durable double molded plastic housing
CAT. II 600V, CAT. III 300V safety rating
Auto shut-off
