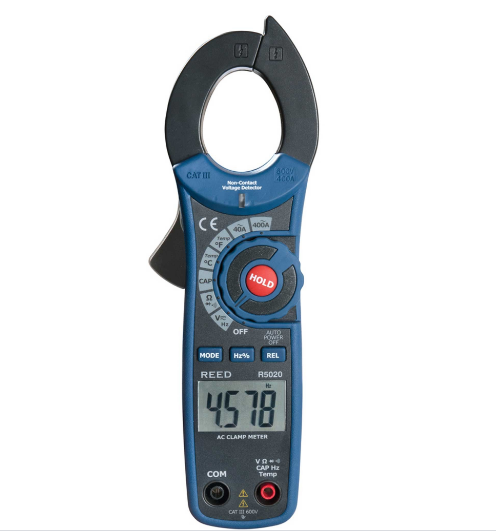

REED R5020 400A AC Clamp Meter with NCV

Name: REED R5020 400A AC Clamp Meter with NCV
Brand: REED Instruments
SKU: R5020
Availability: InStock

Part Number : R5020

This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Availability: low stock

Specifications
Features
Downloads

Auto shut-off	Yes (after 15 mins)
Dimensions	7.9 x 2.6 x 1.5
Display Hold	Yes
Display	4,000 count LCD display
Jaw Opening	1.2
Low Battery Indicator	Yes
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	2 x AAA
Product Certifications	CE
Storage Temperature	-4 to 140°F (-20 to 60°C)
Temperature Range	-4 to 1400°F (-20 to 760°C)
Weight	7.2oz (205g)

Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature
4000-count LCD display with low battery and overrange indicators
Built-in non-contact voltage detector with LED indicator
Display hold and relative mode
Diode test and continuity check functions
Durable double molded plastic housing
Cat. III 600V safety rating
