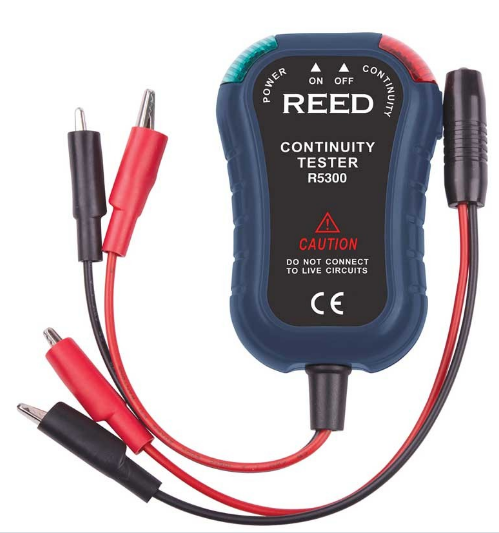

REED R5300 | Continuity Tester | Wires up to 3,000 m (10,000 ft)

Name: REED R5300 | Continuity Tester | Wires up to 3,000 m (10,000 ft)
Brand: REED Instruments
SKU: R5300
Availability: InStock

Part Number : R5300

The REED R5300 checks circuits for continuity and identifies cables and wires up to 3,000 m (10,000 ft) long. Bi-colour LEDs and a loud beeper make wire ends easy to test in noisy places; it is used by electricians, alarm and cable installers and in home audio work.

Continuity checking and wire identification
Cable lengths up to 3,000 m (10,000 ft)
Bi-colour LED and loud beeper indicators
9V battery
115 × 75 × 29 mm, 111 g

Availability: low stock

Specifications
Features
Downloads

Part Number	R5300
Brand	REED
Max Cable Length	3,000 m (10,000 ft)
Indicators	Bi-colour LEDs, beeper
Dimensions	4.5 x 3 x 1.1" (115 x 75 x 29mm)
Operating Humidity Range	0 to 85%
Operating Temperature	14 to 113°F (-10 to 45°C)
Power Supply	9V Battery
Product Certifications	CE
Storage Temperature	14 to 122°F (-10 to 50°C)
Weight	3.9oz (111g)

Local and remote continuity tester
Lightweight design, connect alligator clips and the instrument suspends from wire/cable
Visual (flashing bi-color LEDs) and audible (pulsating beeper) indicators
Probe flashes green or red to indicate polarity
Remote probe allows for one person operation
Capable of sending signal on cable/wire runs up to 10,000 ft (3000m)
Includes battery
