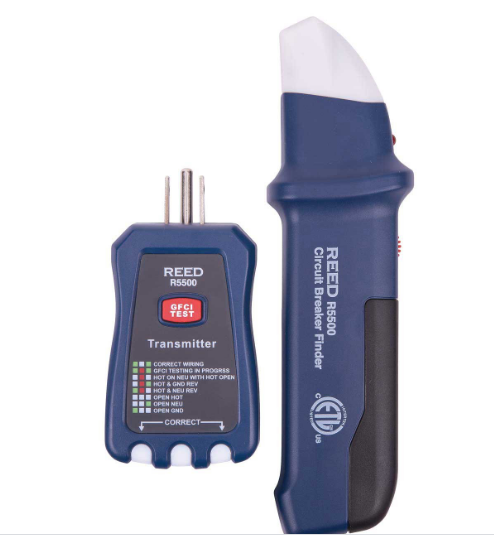

REED R5500 Circuit Breaker Finder

Name: REED R5500 Circuit Breaker Finder
Brand: REED Instruments
SKU: R5500
Availability: OutOfStock

Part Number : R5500

This circuit breaker finder quickly and easily identifies the correct circuit breaker protecting a specific electrical circuit. The R5500 also features a receptacle tester to identify faulty wiring and a GFCI check button.

Availability: Sold out

Specifications
Features
Downloads

Dimensions	4.1 x 2.2 x 1.2" (103 x 56 x 30mm)
Operating Humidity Range	0 to 85%
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	1 x 9V
Product Certifications	ETL
Storage Temperature	4 to 140°F (-20 to 60°C)
Weight	3.9oz (110g)

Simply plug the transmitter into a receptacle and scan breaker box to identify the circuit
Detects 5 3-wire receptacle wiring faults
Built-in GFCI receptacle check function
Adjustable sensitivity wheel quickly identifies breaker
Audible (buzzer) and visual (LED) indicators assist in identification
