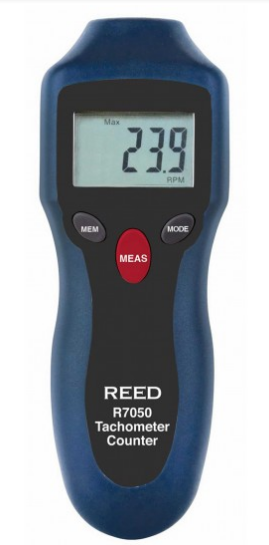

REED R7050 | Compact Photo Tachometer and Counter | Laser, 500 mm Target Distance
Part Number : R7050
The REED R7050 is a pocket-sized photo tachometer that measures the RPM of rotating objects without contact, and doubles as a counter for objects passing through its field of view.
- Memory recalls maximum, minimum and last value
- Class III laser target indicator
- Target distance up to 1.6 ft (500 mm)
- Sampling 0.5 s above 120 RPM
- 9V battery; auto shut-off after 10 seconds
- CE marked
- Response time under 1 second
- Works from 32 to 122°F (0 to 50°C)
For pricing, please contact our experts.
- Specifications
- Features
- Downloads
| Part Number | R7050 |
| Brand | REED |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | 9V battery |
| Auto shut-off | Yes (after 10 secs) |
| Laser Class | Class III |
| Response Time | <1 sec |
| Sampling Time | 0.5 sec (over 120 RPM) |
| Target Distance | 1.6ft (500mm) |
| Visible Indicator | Yes (Laser) |
| Product Certifications | CE |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
- Provides fast and accurate RPM measurements of rotating objects without contact and revolution count of moving objects
- Built-in laser pointer identifies target area
- Durable double molded plastic housing and backlit LCD display
- Internal memory recalls maximum, minimum values as well as last value stored
- Low battery indicator and auto shut-off
