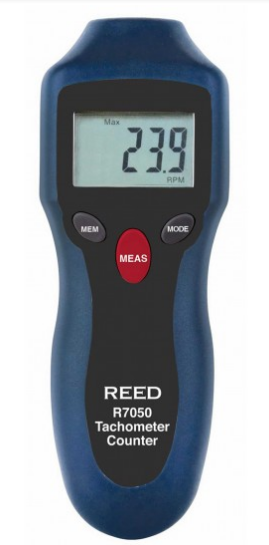

REED R7050 Compact Photo Tachometer and Counter

Client Production

Dedicated Support

Client Production

Dedicated Support

REED R7050 Compact Photo Tachometer and Counter

Name: REED R7050 Compact Photo Tachometer and Counter
Brand: REED Instruments
SKU: R7050
Availability: OutOfStock

Part Number : R7050

This pocket-sized compact photo tachometer measures the RPM (revolutions per minute) of rotating objects without contact. The R7050 also features a digital counter capable of counting moving objects passing through the instrument's field of view and built-in memory capable of recalling maximum, minimum values as well as last value stored.

Availability: Sold out

Specifications
Features
Downloads

Auto shut-off	Yes (after 10 secs)
Laser Class	Class III
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	9V battery
Product Certifications	CE
Response Time	<1 sec
Sampling Time	0.5 sec (over 120 RPM)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Target Distance	1.6ft (500mm)
Visible Indicator	Yes (Laser)

Provides fast and accurate RPM measurements of rotating objects without contact and revolution count of moving objects
Built-in laser pointer identifies target area
Durable double molded plastic housing and backlit LCD display
Internal memory recalls maximum, minimum values as well as last value stored
Low battery indicator and auto shut-off
