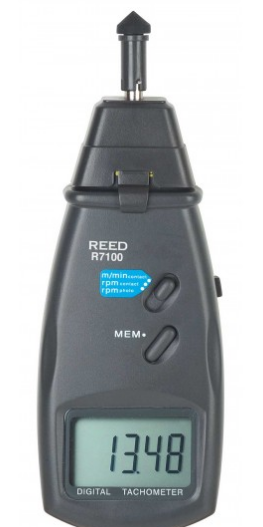

REED R7100 | Combination Contact / Laser Photo Tachometer | RPM and m/min, 500 mm
The REED R7100 combination tachometer measures RPM on rotating equipment and, with the included contact adapters, surface speed in m/min. A built-in laser pointer helps identify the target area for photo readings up to 1.6 ft (500 mm) away.
- Class III laser
- Response under 1 second
- 4 AA batteries; auto shut-off
- 210 x 74 x 37 mm
- Weight 7.9 oz (224 g)
- Operating range 32 to 122°F (0 to 50°C); storage -4 to 140°F (-20 to 60°C)
- Specifications
- Features
- Downloads
| Part Number | R7100 |
| Brand | REED |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | 4 x AA Batteries |
| Auto shut-off | Yes |
| Laser Class | Class III |
| Response Time | <1 sec |
| Target Distance | 1.6ft (500mm) (Photo) |
| Visible Indicator | Yes (Laser) |
| Dimensions | 8.3 x 2.9 x 1.5" (210 x 74 x 37 mm) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Weight | 7.9oz (224g) |
- Dual function unit with both contact and non-contact capabilities
- Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements m/min (meters per min) with included contact adapters
- Built-in laser pointer identifies target area
- Internal memory recalls maximum, minimum values as well as last value stored
- LCD display and low battery indicator
Related Products
Dwyer Instruments NISTCAL-EL1 | Portable Digital Tachometer NIST
Dwyer Instruments NISTCAL-EL1 | Portable Digital Tachometer NIST

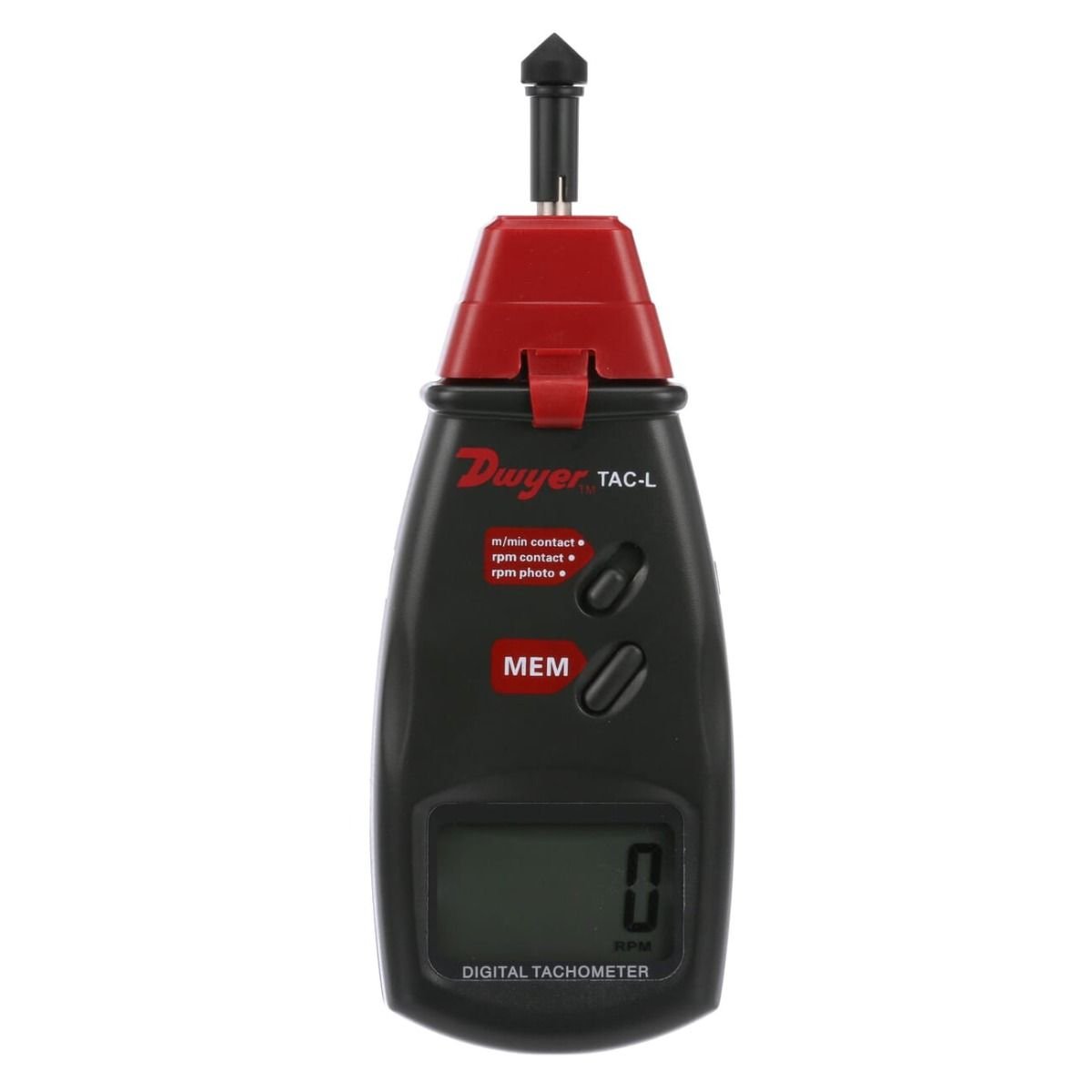

Dwyer Instruments TAC-L | Contact/Non-Contact Digital Tachometer
Dwyer Instruments TAC-L | Contact/Non-Contact Digital Tachometer

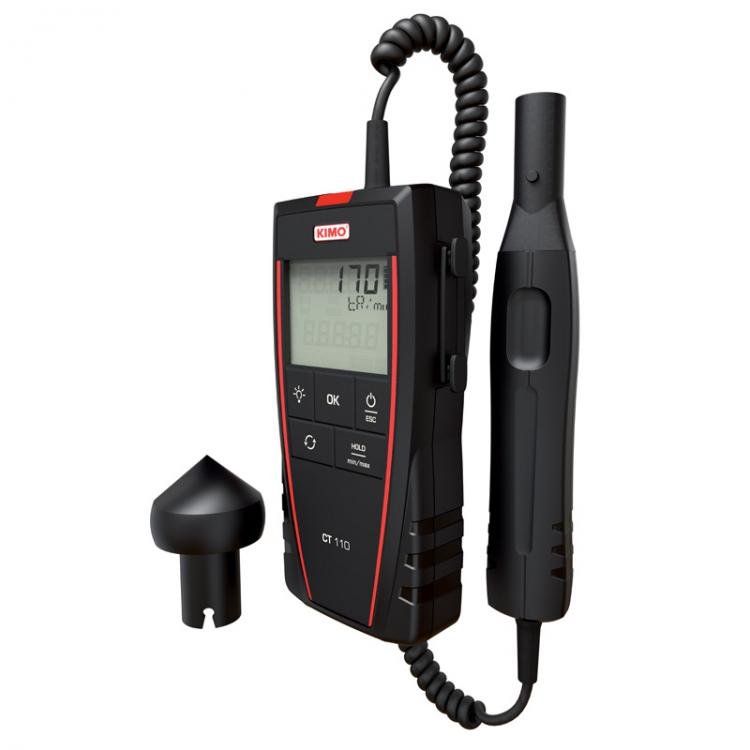

Tachometer, Range optic: 60 to 60,000 rpm and contact: 30 to 3,000 rpm
Tachometer, Range optic: 60 to 60,000 rpm and contact: 30 to 3,000 rpm

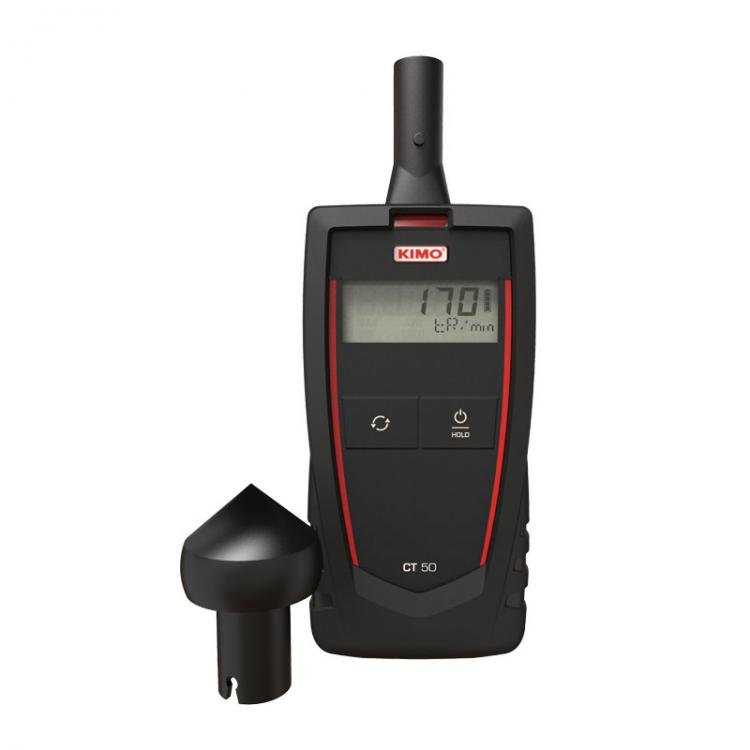

Tachymeter, Range: optic: 60 to 60,000 rpm and contact: 30 to 3,000 rpm
Tachymeter, Range: optic: 60 to 60,000 rpm and contact: 30 to 3,000 rpm
REED K4020-230V | Digital Stroboscope, 230V | 100-10,000 RPM
REED K4020-230V | Digital Stroboscope, 230V | 100-10,000 RPM

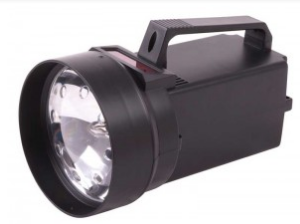

REED K4020 | Digital Stroboscope, 110V | 100-10,000 RPM
REED K4020 | Digital Stroboscope, 110V | 100-10,000 RPM

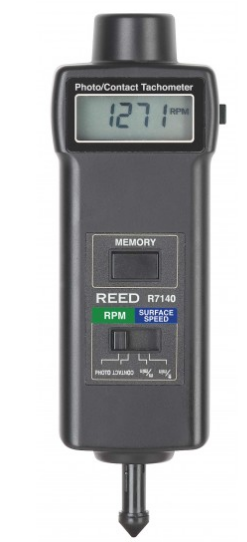

REED R7140 | Combination Contact / Photo Tachometer | 300 mm Photo, m/min and ft/min
REED R7140 | Combination Contact / Photo Tachometer | 300 mm Photo, m/min and ft/min

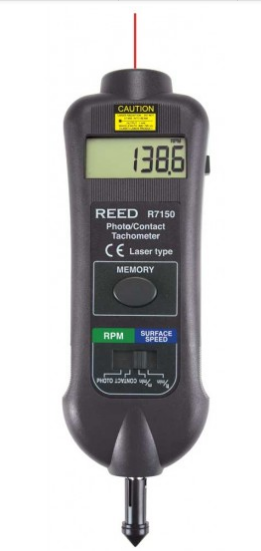

REED R7150 | Professional Contact / Laser Photo Tachometer | 2000 mm Laser Range
