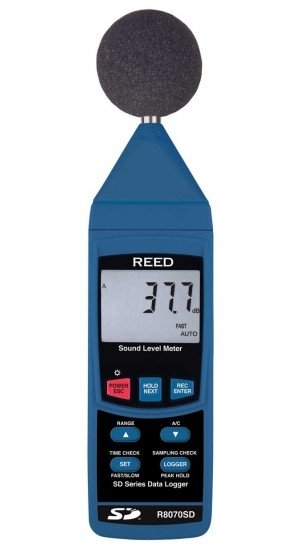

REED R8070SD | Data Logging Sound Level Meter | 0.1 dB Resolution

Name: REED R8070SD | Data Logging Sound Level Meter | 0.1 dB Resolution
Brand: REED Instruments
SKU: R8070SD
Availability: InStock

Part Number : R8070SD

The REED R8070SD is a data logging sound level meter with a 4-digit LCD, 0.1 dB resolution and a 500 ms response time.

Powered by 6 AA batteries or an optional AC adapter
Operating range 32 to 122°F (0 to 50°C), below 85% RH
Storage range 14 to 140°F (-10 to 60°C)
245 x 68 x 45 mm
Weight 0.7 lb (320 g)

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	R8070SD
Brand	REED
Display	4-digit LCD
Operating Humidity Range	Less than 85% RH
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	6 x AA Batteries or AC Adapter (optional)
Resolution	0.1dB
Response Time	500ms
Dimensions	9.7 x 2.7 x 1.8" (245 x 68 x 45mm)
Storage Temperature	14 to 140°F (-10 to 60°C)
Weight	0.7lbs (320g)

High accuracy of ±1.0dB to 1kHz meets Type 2 standards
Triple range measurement (50dB dynamic range)
A & C frequency weighting
Fast & Slow time weighting
Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Peak hold, Data hold and Min/Max hold
Easy-to-read backlit LCD display
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.
