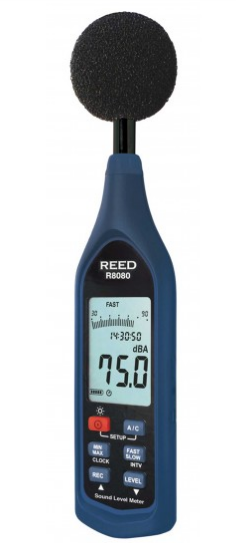

REED R8080 Data Logging Sound Level Meter with Bargraph
This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.
- Specifications
- Features
- Downloads
| Accuracy | +/-1.4 dB |
| Auto shut-off | Yes (after 30 mins/off) |
| Dimensions | 10.4 x 2.5 x 1" (264 x 63 x 29mm) |
| Measuring range | 30-130 dB Low: 30-90dB Med: 50 -110 dB High: 70 -130 dB Full: 30-130 dB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Power Supply | 4 x AAA batteries |
| Resolution | Digital: 0.1 dB Analog: 2dB |
| Response Time | Digital: 500ms Analog: 50ms |
| Storage Temperature | 32 to 104°F (0 to 40°C) |
| Weight | 8.8oz (245g) |
- High accuracy of ±1.4 dB meets Type 2 standards
- Triple range measurement (60dB dynamic range)
- A & C frequency weighting
- Fast & Slow time weighting
- Record up to 64,000 datapoints and keep track with internal time and date stamp
- User selectable sampling rate from 1 to 60 seconds
- Easy-to-read backlit LCD display
- Digital analog bargraph
- Min/Max hold and auto shut off
- Tripod mount for long-term monitoring
- Low battery indicator
