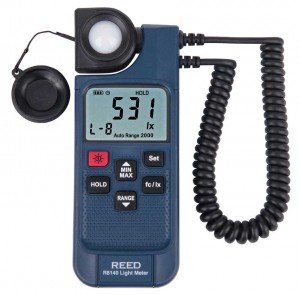

REED R8140 LED Light Meter

Name: REED R8140 LED Light Meter
Brand: REED Instruments
SKU: R8140
Availability: OutOfStock

Part Number : R8140

This LED Light Meter can measure popular light sources up to 199,900 Lux, including white, red, green, yellow, and blue LEDs (19,990 Fc). To improve resolution, the R8140 has an auto-ranging mode that maintains track of lowest and maximum readings. Standard incandescent light sources can also be measured with this equipment.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	Incandescent Light Source: +/-(3% rdg.+ 5 dgt) Other Visible Light Source: +/-8% rdg.
Dimensions	6.7 x 2.5 x 1.5" (169 x 63 x 37 mm)
Display	6-Digit LCD
Measuring range	Lux: 0 to 199,900 Fc: 0 to 19,990
Operating Temperature	32 to 104°F (0 to 40°C)
Response Time	500mS
Storage Temperature	14 to 122°F (-10 to 50°C)
Weight	7.4 oz (210g)

Measures ambient light levels of white, red, yellow, green and blue LED light and visible light in Foot-candles or Lux
Backlit LCD display
Detachable and rotatable light sensor
Min/Max and data hold functions
Cosine and color corrected measurements
User adjustable parameter for specialized light sources
Low battery indicator and auto shut off
