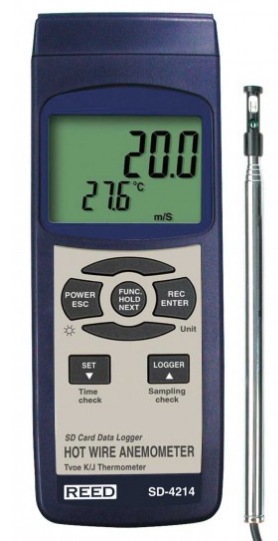

REED SD-4214 | Data Logging Hot Wire Thermo-Anemometer | SD Card, 1–3600 s Sampling
REED's SD-4214 is a hot wire thermo-anemometer from the SD series, logging air velocity and air temperature with a built-in contact thermometer as well. The user chooses a sampling rate between 1 and 3600 seconds, and an Excel file is produced directly on the SD card.
- Hot wire air velocity measurement
- Air temperature plus contact thermometer
- User-selectable sampling, 1 to 3600 s
- SD card storage up to 16 GB
- Optional tripod, AC adapter and live PC software
- Specifications
- Features
- Downloads
| Part Number | SD-4214 |
| Brand | REED |
| Probe | Hot wire |
| Measures | Air velocity, air temperature, contact temperature |
| Data Logging | SD card (max 16 GB) |
| Auto shut-off | Yes (after 10 mins/off) |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38mm) |
| Display | 5-digit, Dual LCD Display |
| Operating Humidity Range | 10-80% |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | 6 x AA batteries or AC Adapter (optional) |
| Product Certifications | CE |
| Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s) |
| Weight | 1.13lb (515g) |
- Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
- Contact temperature measurement with type J/K thermocouple option
- Thermistor sensor for fast air temperature readings
- Hot wire probe for precise low air velocity measurements
- Real-time data logger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Optional PC software features live tracking via USB connection
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
