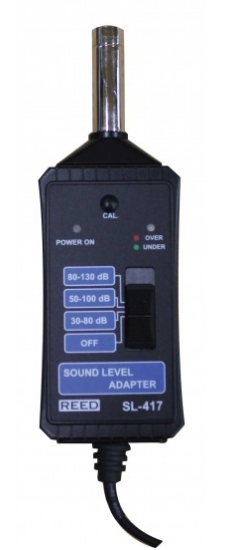

REED SL-417 Sound Level Adaptor for the REED SD-9300
Part Number : SL-417
Cooperate with the SD-9300 Multifunction meter as a professional sound level meter.
For pricing, please contact our experts.
- Specifications
- Features
- Downloads
Battery | DC 9V Battery |
Dimensions | Main Unit: 107 x 53 x 29 mm ( 4.2 x 2.1 x 1.1 inch ) Probe: Dia. 12.7 mm x 58 mm ( Dia. 0.5 inch x 2.28 inch ) Main Unit: 107 x 53 x 29 mm ( 4.2 x 2.1 x 1.1 inch ) Probe: Dia. 12.7 mm x 58 mm ( Dia. 0.5 inch x 2.28 inch ) |
Operating Humidity Range | Less than 80% RH |
Operating Temperature | 0 to 50°C (32 to 122°F) |
Outputs | 10 mV per 1 dB |
Weight | 220 g/0.49 LB (including battery) |
- 30 to 130 dB, 3 ranges
- Frequency weighting networks are designed to meet the IEC 61672 class 2
- A weighting networks are conformity to standards
- Fast Time weighting dynamic characteristic modes
- Condenser microphone for high accuracy & long-term stability
- Over/Under indicator
- Low battery indicator
- Electric condenser microphone
- Size of microphone: 1/2 inch standard size
REED SL-417 Sound Level Adaptor for the REED SD-9300
