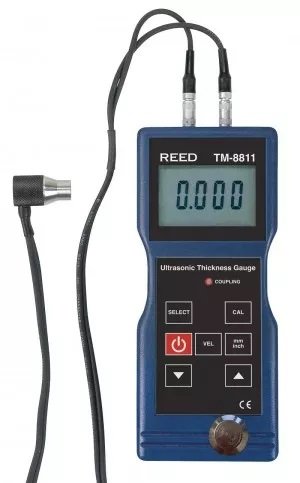

REED TM-8811 | Ultrasonic Thickness Gauge | 1.5 to 200 mm

Name: REED TM-8811 | Ultrasonic Thickness Gauge | 1.5 to 200 mm
Brand: REED Instruments
SKU: TM-8811
Availability: InStock

Part Number : TM-8811

The REED TM-8811 measures thickness from 0.05 to 7.9" (1.5 to 200 mm) in up to ten different materials, shown on an easy-to-read LCD.

Accuracy ±(0.5% + 0.1 mm)
Built-in calibration feature
Low battery indicator; comes with couplant
Resolution 0.001"/0.1 mm
4 AA batteries; CE marked; 258 g

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	TM-8811
Brand	REED
Accuracy	±(0.5% + 0.1mm)
Display	4-Digit, LCD
Measuring range	0.05 to 7.9" (1.5 to 200mm)
Operating Humidity Range	20 to 80%
Operating Temperature	32 to 122°F (0 to 50°C)
Power Supply	4 AA Batteries
Resolution	0.001"/0.1mm
Materials	Up to 10
Dimensions	6.3 x 2.7 x 1.25" (161 x 69 x 32mm)
Product Certifications	CE
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	9oz (258g)

Measures the thickness of steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
Easy-to-read LCD display
Displays sound velocity at the touch of a button
Automatic material calibration
User selectable unit of measure (in/mm)
Low battery indicator
