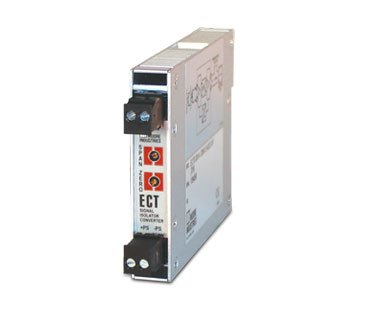

Moore Industries ECT/0-100V/4-20mA/12-42DC [DIN] | ECT-DIN 15mm-wide Signal Isolator and Converter | 0-100 V Input, 4-20 mA Output, 2-Wire Loop Powered
Part Number : ECT/0-100V/4-20mA/12-42DC [DIN]
The Moore Industries ECT-DIN is a DIN-rail signal isolator and converter in a narrow 15 mm metal housing. This 2-wire, output-loop powered model accepts a 0-100 V DC input and gives an isolated 4-20 mA output, powered from the 12-42 Vdc output loop. Accuracy is within 0.1% of span with up to 1500 Vrms input-to-output isolation.
Key features
- Isolates and converts a 0-100 V input to 4-20 mA to stop ground-loop errors
- Narrow 15 mm aluminum housing for high-density DIN-rail mounting
- Accuracy 0.1% of span; stability 0.2% of reading per year
- Isolation up to 1500 Vrms input to output (500 Vrms with the -RF option)
- Output ripple 10 mV peak-to-peak maximum; output response 100 ms to 99% for DC inputs
- Front panel zero and span adjustment (span +/-10%, zero +/-5%)
- Operating temperature -40 to +85 C
