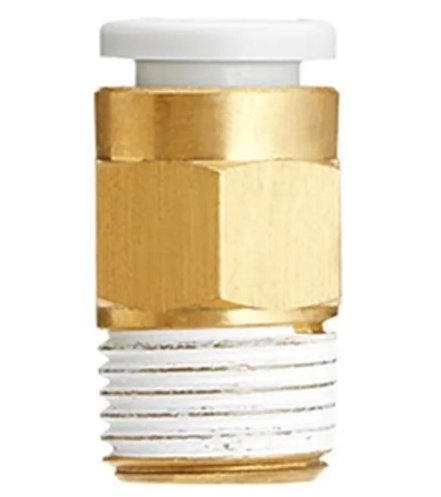

SMC KQ2H16-04NS | Copper Alloy Fitting | Threaded-to-Tube | Series KQ2 | Connection R 1/2 Male | Tube Size 16mm
KQ2 one-touch, metric, and inch size fittings come in a large range of thread types, body designs, and sizes. Positive sealing under pressure is provided by the carefully made packing without the decreased flow that compression fittings frequently experience. The KQ2 release collar facilitates the easy removal of tubing by releasing the chuck and collet with a minimum disconnecting force.

Free UAE shipping available
- Specifications
- Features
- Downloads
Application | Standard/Mini |
Body Material | Brass |
Colour | White |
Connection | A: R 1/2 |
Connection | B: Push In 16 mm |
Fluid | Water / Air |
Functions | Type: Male Connector |
Type | Threaded-to-Tube |
Weight | 39.99 G |
- Takes urethane and nylon tubes
- Suitable for situations involving both positive pressure and vacuum
- Tubing may be easily removed without causing damage thanks to the release collar.
- 1.0 MPa is the maximum vacuum pressure.
