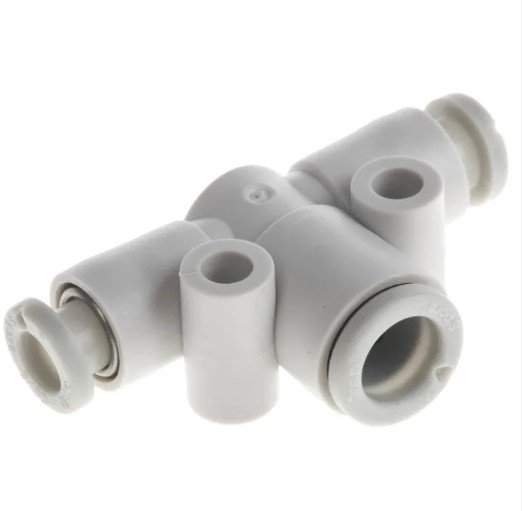

SMC KQ2T04-06A | TEE Fitting | Different Diameter | Series KQ2 | Output Diameter 6mm | Input diameter 4mm
Installing SMC's KQ2T different diameter tee fittings into your fittings is quick and simple. Because of their more compact shape, these KQ2T tees with varying diameters can be utilized in tight spaces. To join tubing for branching at both 90° angles, tees of varying diameter are used. In addition to being lighter than earlier models, the new KQ2 line of goods offers better insertion and removal forces.
- Specifications
- Features
- Downloads
| Body Material | Polypropylene |
| Connection | A Tube: Push In |
| Connection | B Tube: Push In |
| Connection | Branch Tube: Push In |
| Functions | Tube-to-Tube |
| Input | Size: 4mm |
| Operating pressure | -1 to 10 bar |
| Operating Temperature | -5°C to 60°C |
| Output | Size: 6mm |
| Series | KQ2 |
| Type | TEE Fitting |
| Weight | 2.96 g |
Tube Compatibility: Accepts nylon and urethane tubes.
Versatile Use: Suitable for both vacuum and positive pressure applications.
Easy Tube Removal: Release collar allows easy removal without damaging the tube.
Vacuum Pressure: Maximum vacuum pressure of 1.0MPa.
