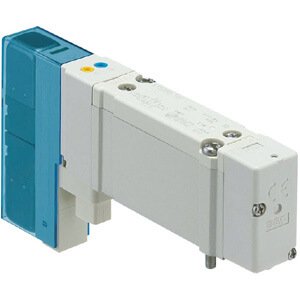

SMC SY513-BYO-01F-Q | Solenoid Valve | Rubber Seal | Series SY5000 | Port Size 1/4 inch
SMC's revised SY series valve has increased product performance and dependability. Although the SY3000 and SY5000 have the same valve width as their predecessors, they are smaller because of an 80% increase in flow. The pilot valve's integrated strainer guards against issues brought on by foreign objects. Ozone resistance has been increased by employing H-NBR seal material for the main valve and seals. Flexible installation is made possible by the availability of side, top, and bottom port/pipe directions. The SY can be used individually or manifold mounted, and it comes in base mounted or body ported designs.

Free UAE shipping available
- Specifications
- Features
- Downloads
Ambiant temperature | "10 to 50°C |
Body Material | Aluminum die-casted |
Enclosure | IP67 |
Fluid | Air |
Mounting | Unrestricted |
Power | 0.35 |
Series | SY5000 |
Type | Solenoid Valve |
Voltage | 24, 12 V DC |
Weight | 90g |
- Rubber Seal: Provides tight sealing for leak-free operation, ensuring reliable and efficient airflow control.
- Series SY5000: Part of the highly regarded SY5000 series, known for its durability and precision in pneumatic applications.
- 1/4 Inch Port Size: Features a 1/4 inch port size, making it suitable for a wide range of industrial applications with moderate air flow requirements.
- Efficient Control: Designed to provide precise control of airflow in pneumatic systems, ensuring optimal performance.
- Versatile Use: Ideal for use in industrial automation and machinery systems, where reliable solenoid control is essential.
- Durable Construction: Built for long-lasting performance, even in demanding environments, providing a cost-effective solution for automation systems.
