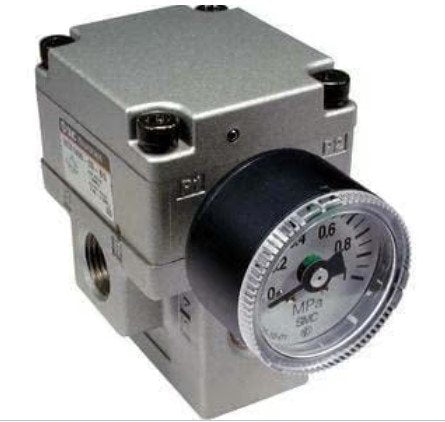

SMC VEX1500-06 | Power Valve | Regulator Valve | Series VEX1 | Port Size 3/4 inch
A regulator valve (VEX1*0), precision regulator (VEX1*3), three-position valve (VEX3), and economy valve (VEX5) are all part of the VEX power valve family. The relief port on the three-port large capacity poppet exhaustion regulator is the same size as the connecting port. For a system with numerous valves, the 3-port, 3-position double solenoid that allows vacuum suction, vacuum destruction, and suspension (closed) is perfect.
- Specifications
- Features
- Downloads
| Ambiant temperature | 0 to 50C |
| Diameter | 3/4 |
| Fluid | Air |
| Hysteresis | 0.03 MPa |
| Mounting | Free |
| Operating pressure | 1.0MPa |
| Port Type | Rc |
| Repeatability | 0.01 MPa |
| Sensitivity | 0.01 MPa |
| Series | VEX1 |
| Shape | Standard |
| Size | Body: 5 |
| Type | Power Valve |
| Weight | 1.12 Kg |
- Valve Series: Power valve and regulator valve
- Styles: Available in air-operated and external pilot solenoid configurations
- Port Sizes: Ranges from 1/8 inch to 2 inches (various sizes including 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, and 1 1/2 inches)
- Maximum Operating Pressure: Up to 1.0 MPa for reliable performance
- Ambient and Fluid Temperature Range: Suitable for temperatures from 0°C to 50°C, ensuring wide environmental compatibility
