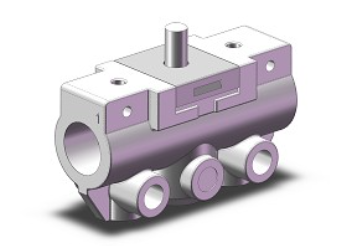

SMC VM130-01-00A | Manual Control Valve | 3-Ports | Series VM100 | Connection R 1/8
The SMC VM130-01-00A Manual Control Valve is a 3-port valve from the renowned VM100 Series designed for manual control in pneumatic systems. This valve allows users to control the direction and flow of air or fluid through a system with ease. Its robust, compact, and modular design makes it ideal for use in applications where precise control and space efficiency are essential.This valve is equipped with a manual lever that gives the operator direct control over the valve’s state. It features a 3-port configuration, which allows it to either control the flow between two different lines or alternate the path of flow between different sections of a system. The connection size is R 1/8, which is commonly used in pneumatic systems, providing ease of installation and compatibility with a range of fittings and components.

Free UAE shipping available
- Specifications
- Features
- Downloads
Body Shape | Block Vertical Type |
Fluid | Air/Inert gas |
Functions | Pneumatic Relay |
Maximum Operating Pressure | 1 MPa |
Maximum operating temperature | +60°C |
Minimum Operating Temperature | -5°C |
Port Type | Rc (R) |
Rod | Arm Type: Spring Rod |
Series | VM100 |
Thread size | 1/8 |
Thread Standard | R |
Weight | 103.2 G |
- Offers flexibility in controlling airflow or fluid direction.
- Suitable for directing air between two pathways or managing multiple flow directions.
- Operated via a manual lever, making it ideal for applications requiring direct operator intervention.
- Ensures simple operation and can be used when automation is not needed.
- Part of the VM100 Series, this valve is compact, making it ideal for tight spaces in automated machinery or systems.
- Modular design allows integration with other components in the VM100 series for system expansion or modification.
- The R 1/8 connection allows for easy installation in pneumatic systems with standard fittings.
- It ensures compatibility with most common pneumatic components.
