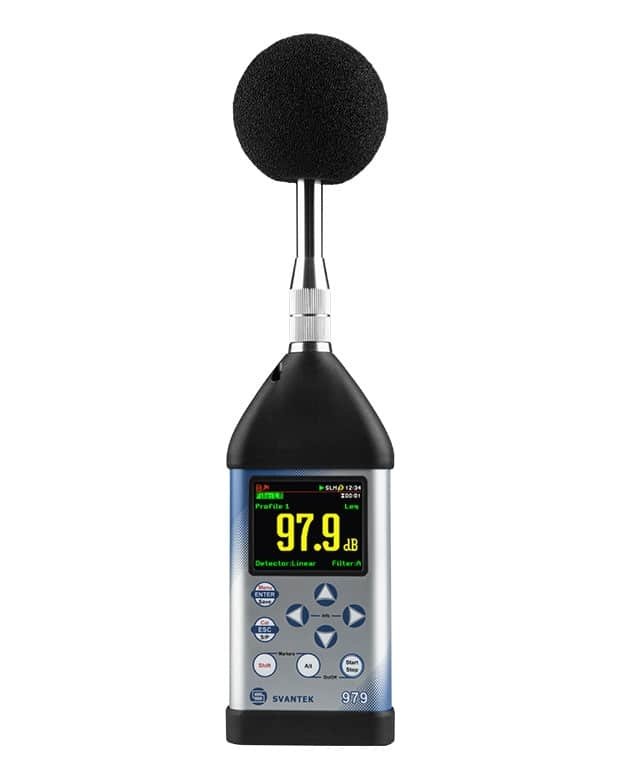

SVAN 979 Class 1 Sound Level Meter and Analyser | Dynamic Range 115 dB
With the best technical specifications, the SVAN 979 is a class 1 TYPE APPROVED sound level meter and analyser. Its measurement range begins at just 12 dBA!
The SVAN 979 is a hand-held equipment that combines all necessary measurement functionalities. The instrument is intended for use in acoustic engineering tasks like measuring sound insulation or analyzing signal tone or frequency precisely. Frequency analysis in the 1/1 and 1/3 octave regions, FFT analysis, and audio recording for noise source identification are all standard features of this complex application.
- Specifications
- Features
- Downloads
| Dimensions | 310 x 79 x 39 mm (with microphone and preamplifier) |
| Display | Super contrast (10000:1) OLED 2.4� colour display (320 x 240 pixels) |
| Frequency (Hz) | 3.15 Hz to 20 kHz, with GRAS 40AE microphone |
| Memory Capacity | MicroSD card 16 GB (included) |
| Noise level | Less than 12 dBA RMS |
| Power Supply | Four NiMH AA rechargeable batteries (included) |
| Range | Linear Operating Range 22 dBA RMS ƒ· 140 dBA Peak (in accordance to IEC 61672) |
| Weight | Approx. 0.6 kg with batteries |
Loudness
Tonality
type approved in accordance with IEC 61672 procedures
Powerful Real-Time Analyser
Hardware dedicated for Professionals
