Thermal Imaging Camera | 320 x 240 9Hz infrared sensor | Temperature Range -40 to 752°F (-40 to 400°C)

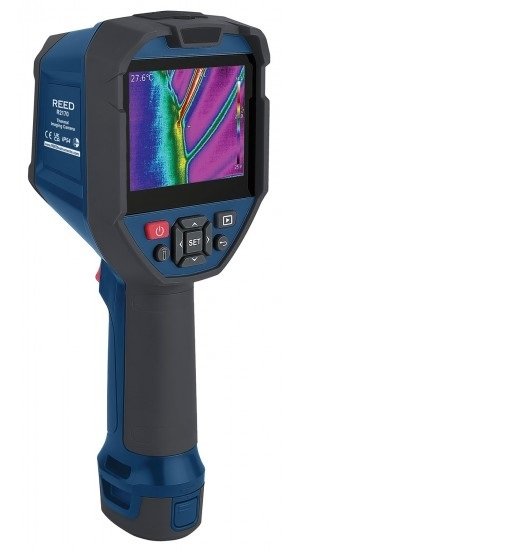

With a 320 x 240 (76,800 pixels) infrared sensor, this professional thermal imaging camera can detect temperatures between -40 and 752°F (-40 and 400°C). On a 3.5" color LCD, the R2170 can show hot and cold spot temperatures, and the user can select from 7 different color schemes. Using the supplied software, a user can view, evaluate, and produce reports or projects on a PC in real-time. To enable ongoing work, the accompanying battery packs have been made to be easily changed in the field.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 10.2 x 3.9 x 3.8" (260 x 99 x 97mm) |
Display | 3.5" color IPS |
Field of View (mm) | 56 x 42° |
Focussing | 4mm |
Operating Temperature | 32 to 122°F (0 to 50°C) |
Power Supply | 3.7V/5200mAh rechargeable Li-ion battery |
Resolution | (IFOV) 3mrad |
Storage Temperature | 14 to 140°F (-10 to 60°C) |
Temperature Range | -40 to 752°F (-40 to 400°C) |
Weight | 1.4lbs (630g) |
76,800 pixels with a resolution of 320 by 240 in infrared.
color IPS display, 3.5".
dual LED flashlight built-in.
7 color schemes are available.
intuitive measurement tools on the screen.
Thermo, Visual Image, Picture-in-Picture, and Fusion (Thermal Blending) are the four image modes.
Spot and alert indications for high and low temperatures.
Tested for IP54 and a 6.5" (2 m) drop.
4 times digital zoom.
Li-ion rechargeable battery.
For long-term, continuous monitoring, a tripod mount is available.
View, examine, and produce reports or projects using real-time analysis of stored data.
Low battery warning and automatic shutdown.
