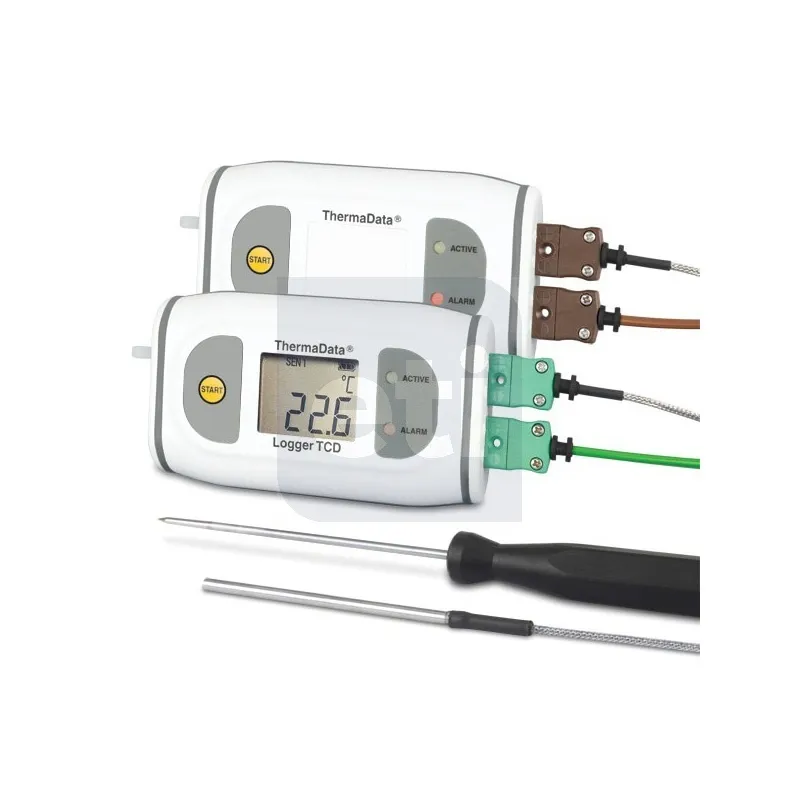

Thermocouple ThermaData Loggers for High Temperature Applications
ThermaData® thermocouple data loggers with two inputs are housed in a water-resistant, ergonomic case with IP65 protection. There are four models available, each with a blind or LCD display and the option of a type K or T thermocouple input. Thermocouple ThermaData®data loggers measure temperature with a 0.1 °C resolution from -100 to 1372 °C, auto-ranging to 1 °C from 301 to 1372 °C. The loggers will record the temperature at programmable intervals, up to a maximum of 16000 readings or 2 x 8000 readings.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.4°C +/-0.1% |
Battery Life | maximum 3 years @ 20 °C |
Battery | AA Tadiran - Li-SOCl |
Dimensions | 34 x 66 x 109 mm |
Display | 12mm LCD |
Operating Temperature | -20 to +50 °C |
Range | K thermocouple: -100 to 1372°C |
Range | T thermocouple: -100 to 400°C |
Resolution | 0.1 °C to 300 °C thereafter 1 °C |
Weight | 177 grams |
IP65 protection is provided by the water-resistant housing.
K or T thermocouple input with two channels.
Temperatures range from -100 to 1372°C.
A visual representation of the high/low alarm status is provided.
There are four models: blind, LCD, Type K, and Type T.
EN 13485 is the European Standard.
