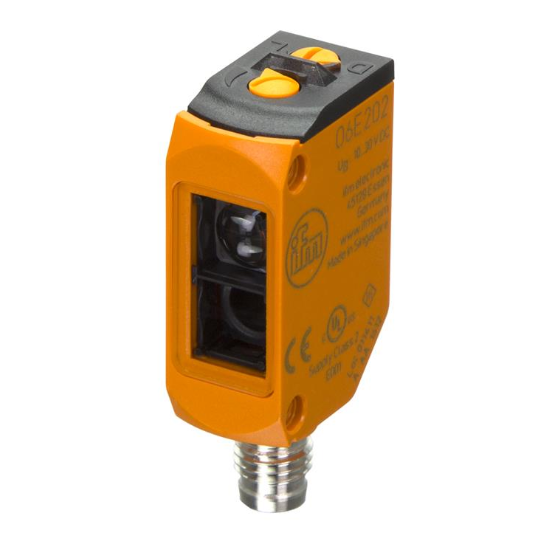

Through-beam sensor ifm electronic O6E202 - O6E-FPKG/AS/3P
The receiver of the O6E202 - O6E-FPKG/AS/3P through-beam sensor from ifm electronic is characterised by a plastic housing with protection rating IP65/IP67, light-on/dark-on mode and a range of 10.0 m. The through-beam sensor O6E203 is easily set via potentiometer. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6E202 through-beam sensor with a 3-pole M8 connection is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 60 °C |
| Current consumption [mA] | 7; ((24 V)) |
| Housing | rectangular |
| Light Source | red light |
| Operating voltage [V] | 10-30 DC V |
| Overload protection | yes |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Particularly compact housing for use where space is restricted
- Very long range independent of the object color
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
