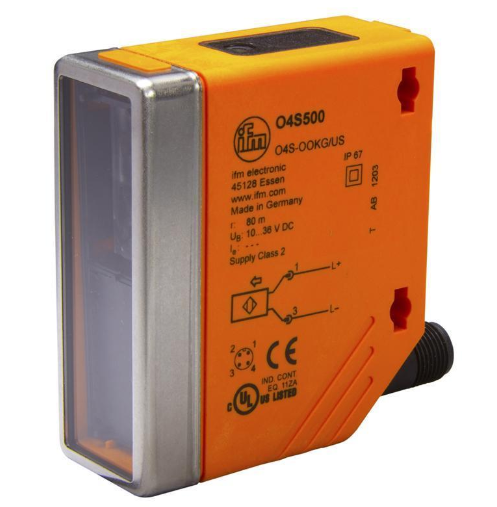

Through-beam sensor - transmitter ifm electronic O4S500 - O4S-00KG/US
The transmitter of the rectangular through-beam sensor O4S500 - O4S-00KG/US from ifm is characterised by a large range of 0-80 m and the high protection rating IP67. A large range of mounting accessories is available for the through-beam sensor to ensure easy, flexible and time-saving adaptation. The transmitter of the through-beam sensor O4S500 - O4S-00KG/US with M12 connection in conjunction with the matching receiver is the optimum solution for the timber, paper and automotive industry as well as for transport and conveying technology and steel processing.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 60 °C |
| Current consumption [mA] | 20 |
| Housing | rectangular |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPE |
| Operating voltage [V] | 10-36 DC V |
| Overload protection | yes |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Weight | 122g |
- Very long range
- Robust housing for use in harsh industrial environments
- Clearly visible indication of the readiness for operation
- Excellent price/performance ratio
- With connector that can be rotated by 270°
