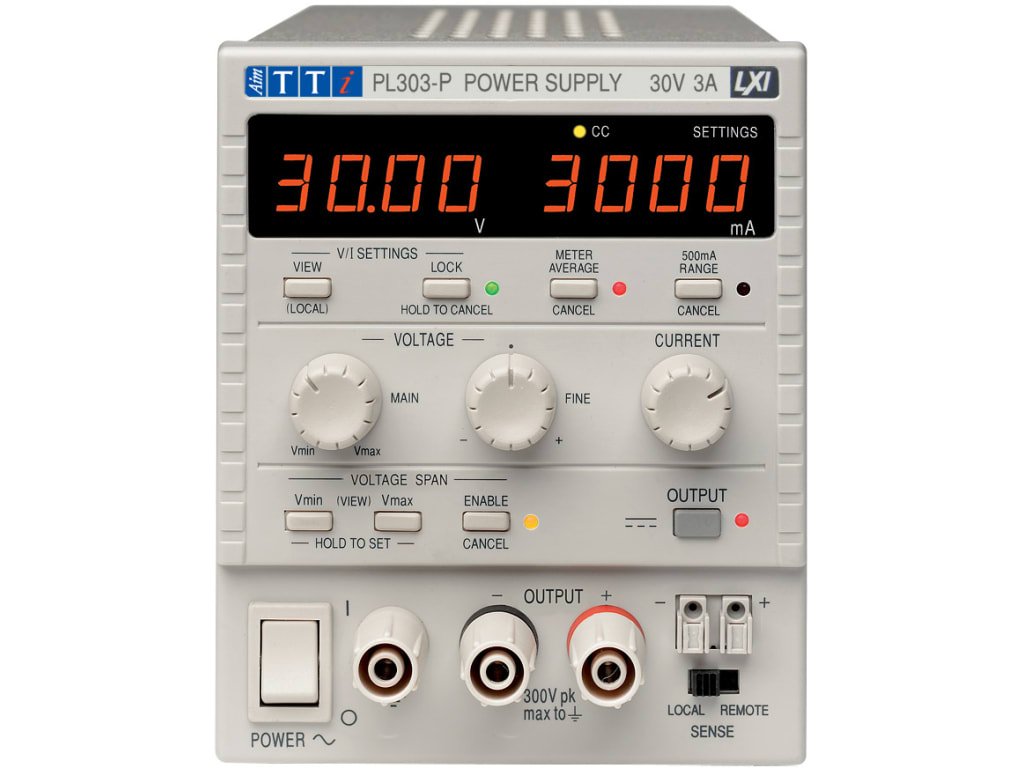

TTi PL303-P(G) | Bench System DC Power Supply | Single 0-30V/0-3A USB/RS232/LAN(LXI)/Analog/GPIB
The most recent linear regulated power supply series from TTi is called the New PL-P Series, and it is bus programmable. The New PL-P series adds complete remote control capabilities while maintaining all of the manual control features of the New PL series. Its user-friendly manual controls are still available for bench top applications, but its ultra-compact rack-modular design makes it excellent for rack mounted system applications.
- Specifications
- Features
- Downloads
| Dimensions | Single output models - 107mm x 131mm (1/4 rack 3U) x 315mm, Dual output model - 214mm x 131mm (1/2 rack 3U) x 288mm Triple output model - 321mm x 131mm (3/4 rack 3U) x 288mm (sizes exclude feet, knobs and terminals). |
| Operating Temperature | +5oC to +40oC, 20% to 80% RH |
| Storage Temperature | -40oC to + 70oC |
| Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II |
| Weight | Single output models - 4·9kg; Dual output model - 8.6kg; Triple output model - 12.8kg |
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied
Analog remote control of V and I
Front and rear terminalsBench System DC Power Supply, Linear Regulation,
Smart Analog Controls Single Output, 30V/3A, USB, RS232, LAN Interfaces and GPIB
High performance linear regulated power supplies
0 to 30V at 0 to 3A
