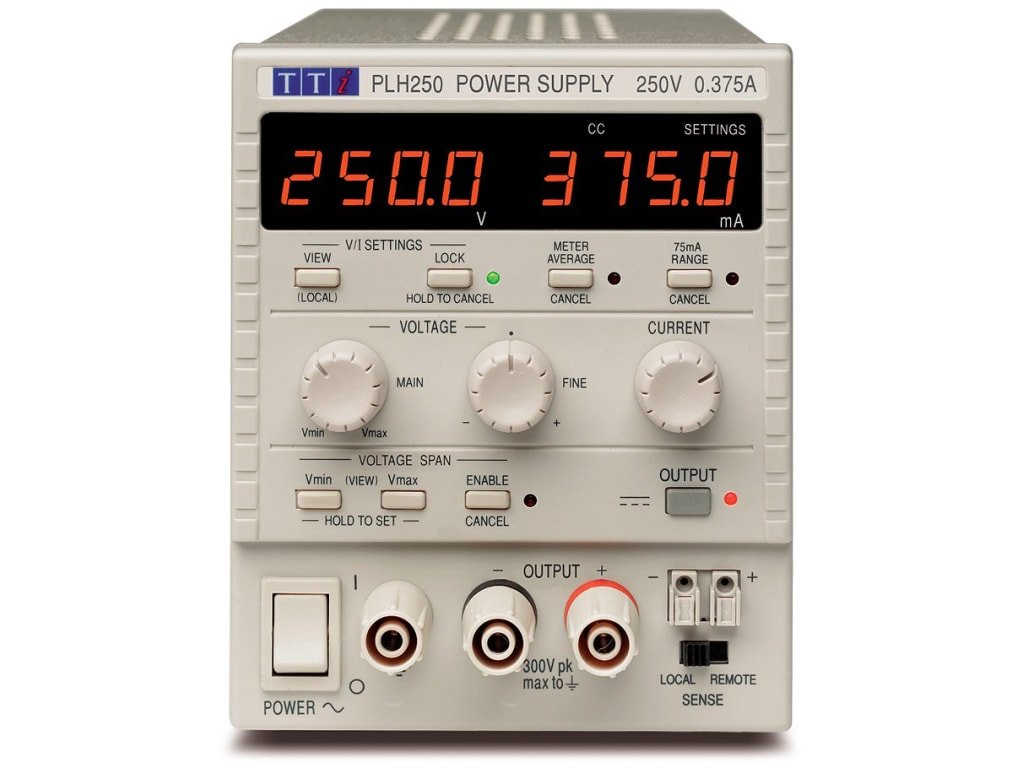

TTi PLH250 | Higher Voltage Linear Regulated DC Bench Power Supply | Single 0-250V/0-0.375A

Name: TTi PLH250 | Higher Voltage Linear Regulated DC Bench Power Supply | Single 0-250V/0-0.375A
Brand: Aim Tti
SKU: PLH250
Availability: OutOfStock

Part Number : PLH250

The newest high-performance linear regulated DC power supply line from TTi is the PLH Series. It has a similar power output and is based on the New PL Series of lower voltage precision linear power supply (which deliver up to 60V). There are, however, some characteristics unique to the greater voltage. True analogue controls are combined with brand-new, digitally based convenience features in the PLH Series.

Availability: Sold out

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

PLH & PLH-P Series

PLH is a development of the Aim-TTi PL series. The ultra compact form, high power density and smart analog controls of PL are incorporated in PLH, which also offers voltages up to 250V to cover applications beyond the capabilities of standard bench PSUs and into areas such as magnetics. PLH-P includes all the manual control features of PLH but offers also full remote control and read-back for bench and system applications using RS-232, USB and Ethernet (LAN/LXI).

Input power 280VA maximum
Low output noise and fast transient recovery
High power density - up to 94W from a quarter-rack, 3U sized casing
Unusually small bench footprint and, for rack-mount applications, up to 4 units can be mounted into a single slot
Exceptional line and load regulation, easy-switch remote sense
High accuracy 4-digit fixed-resolution meters, low current range, current meter averaging
Quick and intuitive adjustment of voltage and current
Unique S-Lock function digitally locks voltage and current settings at the touch of a button
Unique V-Span function enables the full 300Â° rotation of the voltage control to cover any voltage range
DC output switch enables voltage and current to be set up before connecting the load
Operating temperature range +5ÂºC â†’ +40ÂºC, 20% â†’ 80% RH
Storage temperature range -40ÂºC â†’ +70ÂºC
Suitable for indoor use at altitudes up to 2000m, Pollution Degree 2
Intelligent variable-speed low-noise fan assists convection cooling

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and (PLH-P only) CD containing driver software

Dimensions	PLH models - 107mm x 131mm (1/4 rack 3U) x 288mm
Display	Dual 4-digit meters, 10mm (0·39�) LED.
Operating Temperature	+5oC to +40oC, 20% to 80% RH
Storage Temperature	-40oC to + 70oC
Weight	4.9kg

High accuracy four digit fixed-resolution meters
Low current range; current meter averaging
Dc output switch - check your settings before applying them
View settings button - check and adjust limits at any time
Lockable voltage and current settings (using S-Lock)
PLH250 Single 0-250V/0-0.375A Higher Voltage Linear Regulated DC Bench Power Supply
Low output noise and fast transient recovery
Up to 94 watts from an ultra-compact case size
Exceptional line and load regulation
Easy-switch remote sense
