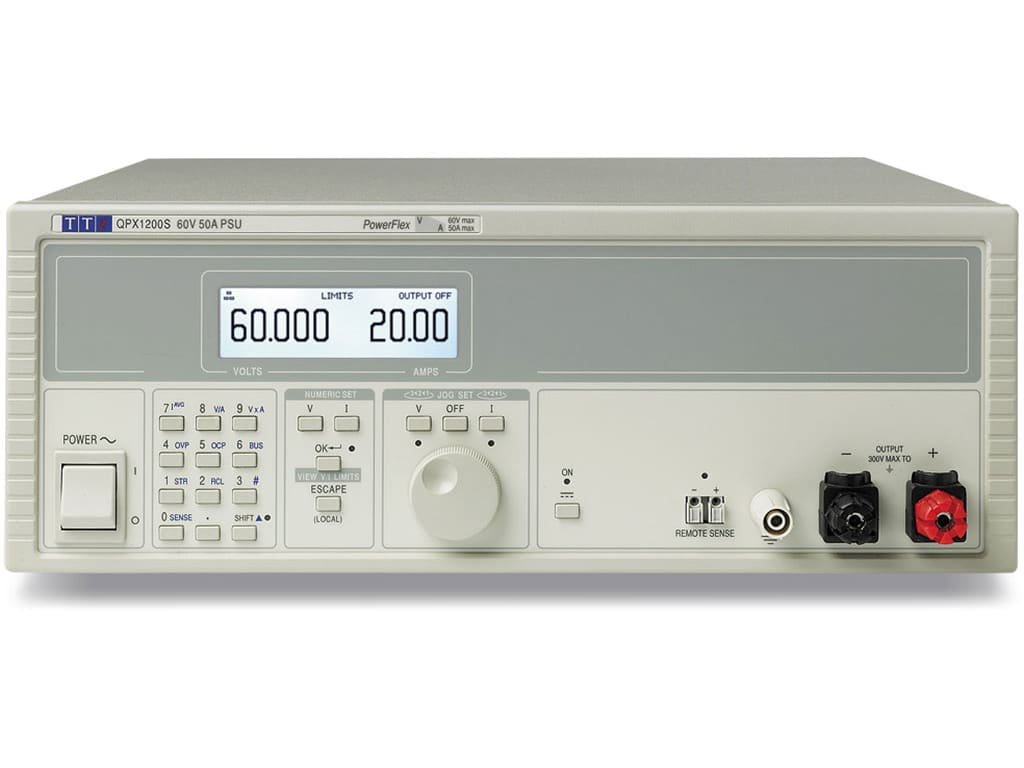

TTi QPX1200S | Analog Power Supplies | 1200W 'PowerFlex' Max 60V or 50A /
Part Number : QPX1200S
A 1.2kW single output dc power supply called the QPX1200S gives consumers a level of versatility that is not possible with customary laboratory power sources. It is equipped with front and rear terminals as well as an analogue remote control interface and is suitable for bench-top and system applications. Wide-ranging digital interfaces such as USB, RS232, GPIB, and LXI compatible LAN are added by the QPX1200SP (Ethernet). * Keep in mind that the now-discontinued QPX1200L is the same as the QPX1200SP except that it lacks the GPIB interface.
Free UAE shipping available
For pricing, please contact our experts.
1.2KW PowerFlex, 60V/50A QPX1200S & SP
Suitable for bench or system use with terminals front and rear. The PowerFlex design offers voltage and current combinations between 60V/20A and 20V/50A. Mixed mode regulation with linear output stage gives low output noise. Both versions include an analogue interface. The SP version includes USB, RS232 and LAN (Ethernet) with support for LXI.
For an optional GPIB module see stock number 144-5481.
PowerFlex design gives variable voltage/current combinations
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN
Note
Supplied with
Manual, mains lead and CD containing driver software
Supplied with
Test Bridge Logging and sequencing software
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
