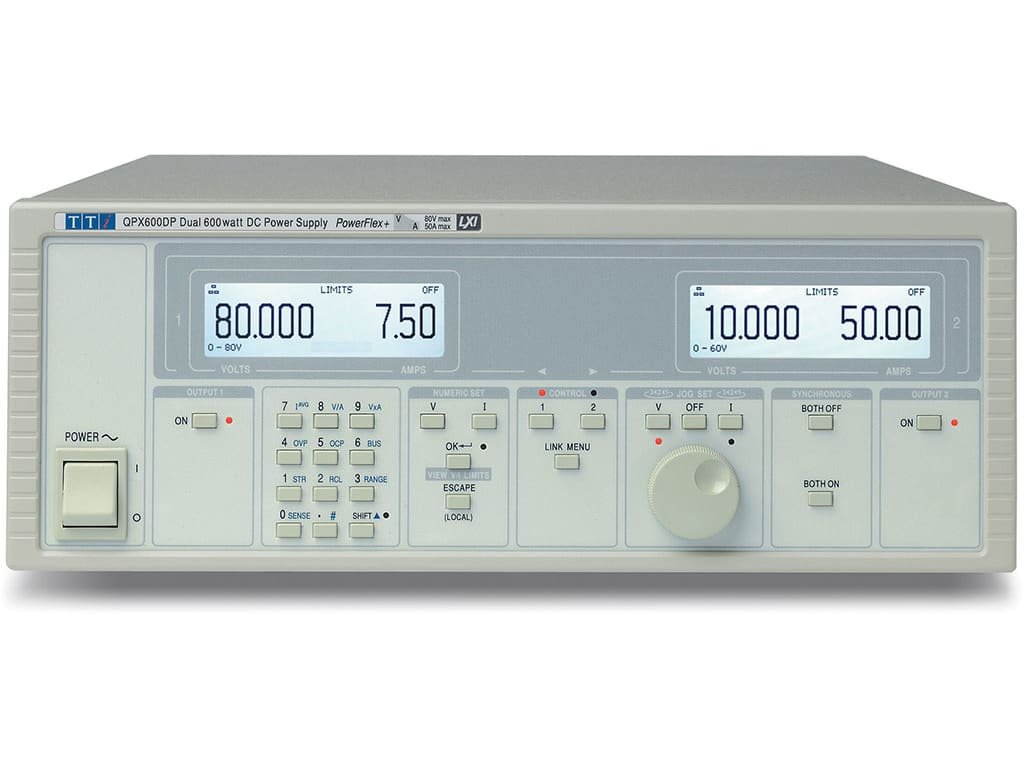

TTi QPX600DP | Analog Power Supplies | Max 80V or 50A RS232/USB/LAN(LXI) | Dual 600W PowerFlex

Name: TTi QPX600DP | Analog Power Supplies | Max 80V or 50A RS232/USB/LAN(LXI) | Dual 600W PowerFlex
Brand: Aim Tti
SKU: QPX600DP
Availability: OutOfStock

Part Number : QPX600DP

A 1.2kW single output dc power supply called the QPX1200S gives consumers a level of versatility that is not possible with customary laboratory power sources. It is equipped with front and rear terminals as well as an analogue remote control interface and is suitable for bench-top and system applications. Wide-ranging digital interfaces, including USB, RS232, and LXI-compliant LAN, are added by the QPX1200SP (Ethernet). * Take note that the QPX1200L (now discontinued) and QPX1200SP are identical.

Availability: Sold out

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

Dual Output 1.2kW PowerFlex, 80V/50A Programmable DC Power Supply

The QPX600D and DP are dual output power supplies which offer two independent or tracking outputs of 600 watts each. The PowerFlex + design offers an extremely wide range of voltage/current combinations up to 80V and 50A on each output. Both versions include an analogue interface. The DP version includes USB, RS232 and LAN (Ethernet) with support for LXI.

For an optional GPIB module see stock number 144-5481.

Dual independent or tracking 600W outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple - fast transient response
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current

RS-232, USB and LAN (LXI) interfaces

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and CD containing driver software

Aim-TTi Series QPX Bench Power Supply, IEC 320 Input Connector, 600W Power Rating - QPX600D

This bench power supply by Aim-TTi is a versatile autoranging power supply ideal for various applications. With a power rating of 600W offers variable voltage and current combinations over a wide range, providing up to 80V and 50A within each power envelope. This digital power supply is designed to meet the flexibility needs in choosing voltage and current, making it a valuable tool for both bench-top and system applications.

Features & Benefits

â€¢ Dual independent or tracking outputs, each capable of up to 600 watts
â€¢ Smart tracking and metering for easy series/parallel operation
â€¢ Ultra-wide range of voltage/current combinations
â€¢ Variable OVP and OCP trips for added protection
â€¢ Analogue, RS-232, USB, GPIB, and LAN interfaces for comprehensive connectivity
â€¢ Low output noise and ripple for precise power delivery

Applications

â€¢ Ideal for laboratory settings, electronic testing, and calibration purposes
â€¢ Suitable for applications requiring high current and variable voltage ranges

Can it be used for both bench-top and system applications?

Yes, it is designed to be versatile for use in various applications, including bench-top and system setups.

Will it provide reliable smart tracking and metering functions?

Yes, it offers smart tracking and metering functions for easy series or parallel wiring, providing enhanced flexibility in power delivery.

Is it suitable for applications requiring high voltage or current simulations?

Yes, with its PowerFlex+ design and tracking modes, it can simulate higher voltage or current outputs, making it suitable for a wide range of applications.

Dimensions	350 x 130 x 413mm (WxHxD) (3U height) .
Display	Large dot-matrix black-on-white backlit LCD.
Operating Temperature	+5oC to +40oC, 20% to 80% RH
Storage Temperature	-40oC to + 70oC
Voltage	110V to 240V AC +/-10%, 50/60Hz. Installation Category II.
Weight	9.2kg (20lb).

Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and currentQPX600DP Dual 600W PowerFlex Max 80V or 50A RS232/USB/LAN(LXI)/Analog/GPIB Analog Power Supplies
Dual independent or tracking 600 watt outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
