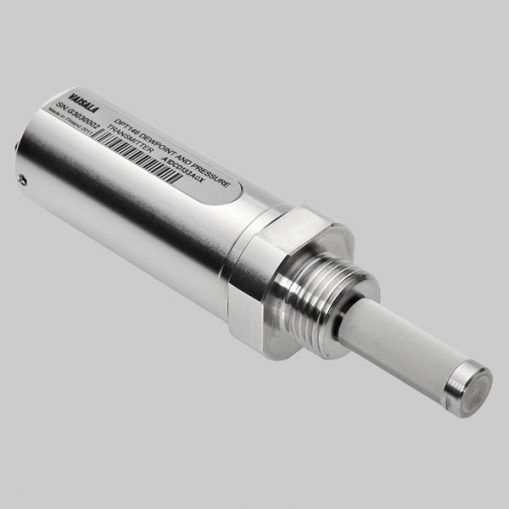

Vaisala DPT146 | Dew Point & Pressure Transmitter

Name: Vaisala DPT146 | Dew Point & Pressure Transmitter
Brand: VAISALA
SKU: DPT146
Availability: OutOfStock

Part Number : DPT146

The Vaisala DPT146 is a dual-purpose pressure and dew point transmitter. The Vaisala DPT146 is a straightforward, integrated measurement device that lowers installation costs because it was created especially with compressed air applications in mind. Furthermore, calibration can be spot checked against a Vaisala DM70 Portable Dewpoint Meter, simplifying ongoing maintenance. Additionally, the DM70 can be utilized as a data recorder and local display. RS-485 communications can be used to measure temperature in addition to dewpoint and pressure.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Dew Point	-70 ¦ +30 °C (accuracy within +/-2°C)
PRESSURE	1 ¦ 12 barA
Temperature Range	40¦+80°C

Vaisala DPT146 Dew Point & Pressure Transmitter

24Vdc supply with 2x analogue output channels (typically dew point and pressure)
Analogue outputs can be mA (usually 4-20mA) or 0-5v / 0-10v
Compact design, full length including sensor probe approx 120-130mm x 33mm DIA
316SS construction with various threaded process connection options
Operating environment -40…+60°C, 0-100% RH (storage up to +80C), IP66 design
Combined dew point and temperature measurement
Highly accurate RH information thanks to dew point data coupled with live pressure input
Compatible with the Vaisala Hand-Held DM70 for spot-checking, local display and data logging
Pressure range: 1 … 12 barA
Dew point range: -70 … +30 °C (accuracy within ±2°C)
Temperature range (via RS-485 is selected) -40…+80°C (accuracy within ±0.5°C at room ambient)
Supply and signal connection via M8 4-pin circular plug (cable assemblies available from Fluidic)
