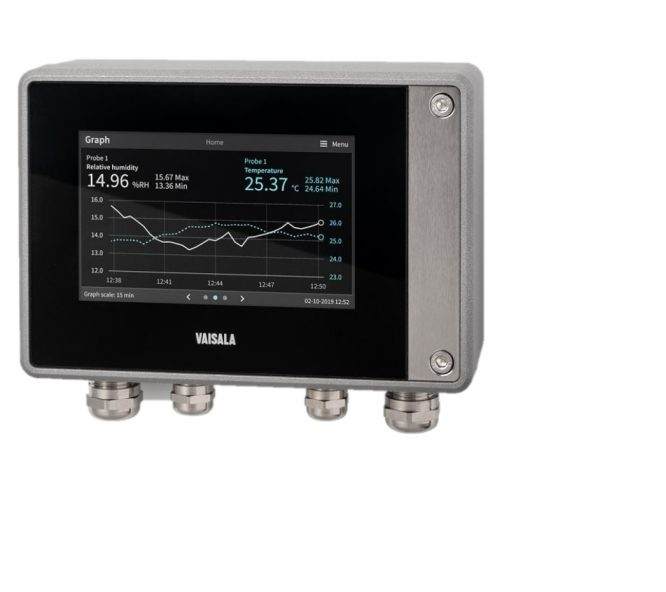

Vaisala Indigo 520 | Indigo 500 Series Transmitter
The Vaisala Indigo 500 is a reliable, industrial-grade transmitter that supports many parameters for standalone smart probes. Installing and removing the plug-and-play probes for calibration is simple. The Vaisala Indigo 500 may send measurements to automation systems via relays, analog signals, or the Modbus TCP/IP protocol in addition to displaying them immediately. Numerous more features are available for the independent probes in the Vaisala Indigo 500 series. Local data visualization and simple probe configuration access are offered by the touchscreen display. Additionally, the transmitter expands the possibilities for wiring, supply voltage, and connectivity. In cases when wall-mount probe installation is preferred, it also offers mechanical support. Even under the most severe circumstances, dependable performance is guaranteed with a sturdy metal casing certified IP66 and NEMA4.
- Specifications
- Features
- Downloads
| Display | Graphical, touch screen interface |
| Power | 100 ¦ 240 VAC 50/60 Hz |
| Protection | IP66 |
The Vaisala Indigo 500 Transmitter family comes in two versions:
- Transmitter Vaisala Indigo 510.
Two analogue outputs from a single probe input (such as RH&T from a single probe).
- Transmitter Vaisala Indigo 520.
permits two relay switches, four analogue outputs, and up to two probe inputs.
For instance, the heated HMP7 sensor and separate TMP1 temperature probe would necessitate the use of the Indigo 520.
Vaisala Indigo 500 offers the following probe options:
- Humidity and temperature probes: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, and TMP1
- Dew point probes: DMP5, DMP6, DMP7, DMP8
- CO2 probes: GMP251, GMP252
- Vaporized hydrogen peroxide probes: HPP271, HPP272
- MMP8 moisture in oil probe
