Western Instruments WDV-14 | Electrical Test Instrument | 14,000, 14" (368 mm)

Name: Western Instruments WDV-14 | Electrical Test Instrument | 14,000, 14" (368 mm)
Brand: Western Instruments
SKU: WDV-14
Availability: InStock

Part Number : WDV-14

The Western Instruments WDV-14 is an electrical test instrument with output 14,000, 115v/60hz 13 Amps and 230v/50hz 6.5 Amps.

115V/60Hz: 13 Amps
230V/50HZ: 6.5 Amps
ID Size: 14" (368 mm)
Output: 14,000
Weight: 55 Pounds (25kg)

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

115V/60Hz	13 Amps
230V/50HZ	6.5 Amps
ID Size	14" (368 mm)
Output	14,000
Weight	55 Pounds (25kg)

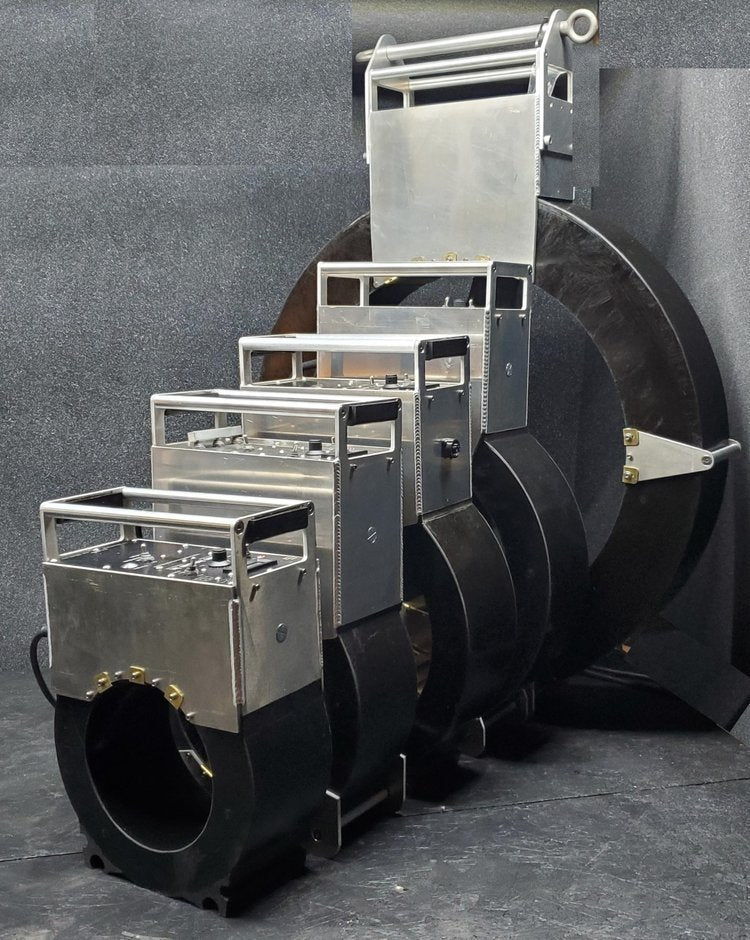

ID sizes are as follows: 8.5" (216 mm), 10.5" (267 mm), 14" (368 mm), 16" (406 mm), 18" (457 mm), and 25" (635 mm).
Meeting the most stringent specifications, the DC output exceeds 1,000 amp turns per inch of ID.

Top-mounted power supply with infinite variable control of the DC output for the operator.
Constant-reading digital ammeter with solid-state electronic controls.
Capabilities for manual reversing DC demagnetization.
Polarity Reversing DC demag switch - reduces amperage followed by a brief energising pulse, then repeats reducing and reversing until the field is reduced to an acceptable level.
AC Optional AC Field output of 0 to 5,000 Amp Turns for demagnetizing small parts or inspecting with.
