WDV Series DC Coils | High Output Full Wave | ID Size 14" (368 mm)
Western's Heavy Duty Coil Flagship Series is unlike any other type of Coil, Cable Wrap, or Mobile Power Supply. These World Famous Coils have an unrivalled reputation for portability and the ability to perform DC De-Magnetization. The WD Series Coils provide a powerful full-wave DC output as well as an optional AC output. Western's exclusive Pulse DC Option simulates a Half Wave DC Magnetizing Field to aid particle mobility. The WD-Series Coils are available with a variety of Mechanical Options for protection, convenience, and fixturing. For Fracturing and Cementing Connections, WD-Series Coils are the industry standard (Hammer Unions and Fittings). Castings and forgings are commonly tested and demagnetized using WD-Series Coils.

Free UAE shipping available
- Specifications
- Features
- Downloads
115V/60Hz | 13 Amps |
230V/50HZ | 6.5 Amps |
ID Size | 14" (368 mm) |
Output | 14,000 |
Weight | 55 Pounds (25kg) |

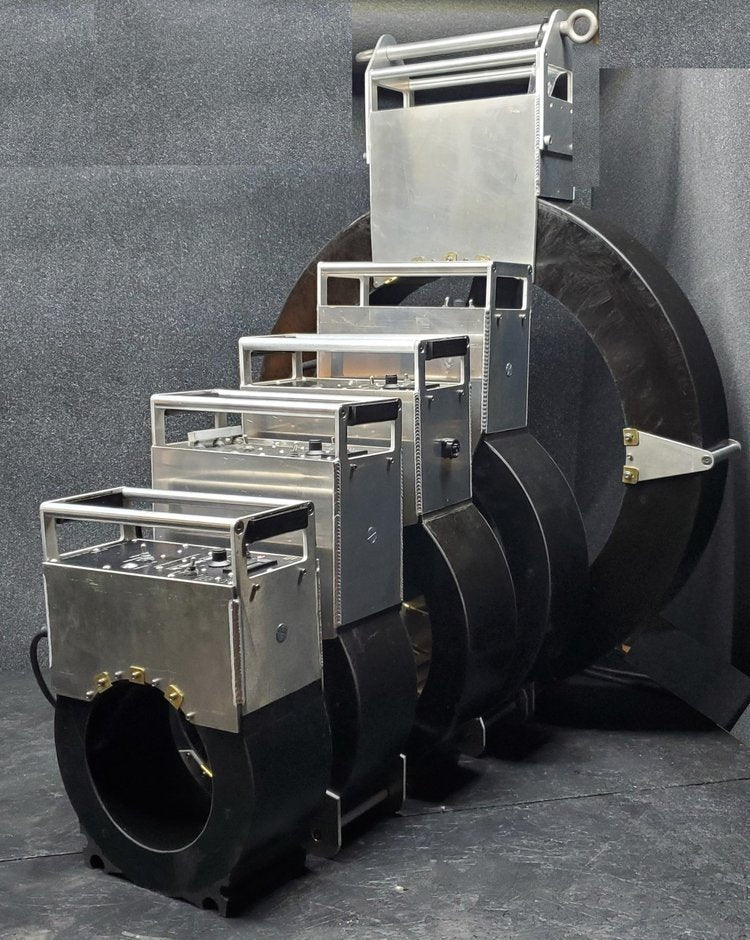

ID sizes are as follows: 8.5" (216 mm), 10.5" (267 mm), 14" (368 mm), 16" (406 mm), 18" (457 mm), and 25" (635 mm).
Meeting the most stringent specifications, the DC output exceeds 1,000 amp turns per inch of ID.
Top-mounted power supply with infinite variable control of the DC output for the operator.
Constant-reading digital ammeter with solid-state electronic controls.
Capabilities for manual reversing DC demagnetization.
Polarity Reversing DC demag switch - reduces amperage followed by a brief energising pulse, then repeats reducing and reversing until the field is reduced to an acceptable level.
AC Optional AC Field output of 0 to 5,000 Amp Turns for demagnetizing small parts or inspecting with.
