Wohler SC 660 | Smart Connect EN

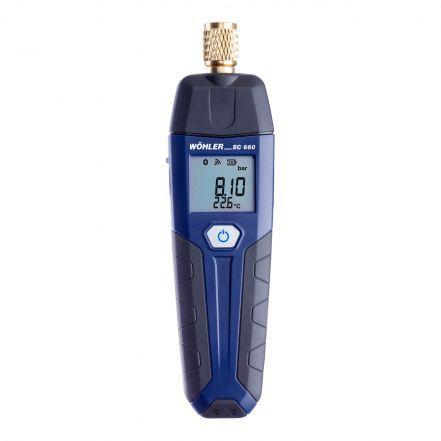

Even pressure readings up to 60 bar can be handled by the compact and convenient Wöhler SC 660 Smart Connect. This makes it feasible to do pressure testing on water pipes without encountering any issues. The gadget has its own display and may be used separately for temperature and pressure readings in addition to being able to be connected to the Wöhler M 603 via Bluetooth. The Wöhler SC 660 can also be used with the Wöhler Smart Connect app. It is available for free download to a mobile device, from which the user can control a variety of metrics. The measurement data can then be printed, sent, or stored as a PDF protocol.

Free UAE shipping available
- Specifications
- Downloads
Power Supply | 2 batteries 1.5 V, AA LR6 Lithium-polymer battery (optional) 38 hrs service life |
PRESSURE | Differencial pressure (compared to the ambient pressure) Measuring range: -1¦60 bar Permissible overload: 65 bar Accuracy: < 3¢°% of measured value in the range +/-1 bar better than 0.03 bar Resolution: 0.01 bar |
Temperature | External temperature measurement Measuring range: -20¦800 °C Accuracy: < +/-1 °C in the range -20¦67 °C otherwise 1.5 % of measured value according to EN 50379-1 Resolution: 0.1 °C |
Temperature | Internal temperature measurement Measuring range: -20¦60 °C Accuracy: < +/-1 °C Resolution: 0.1 °C |
