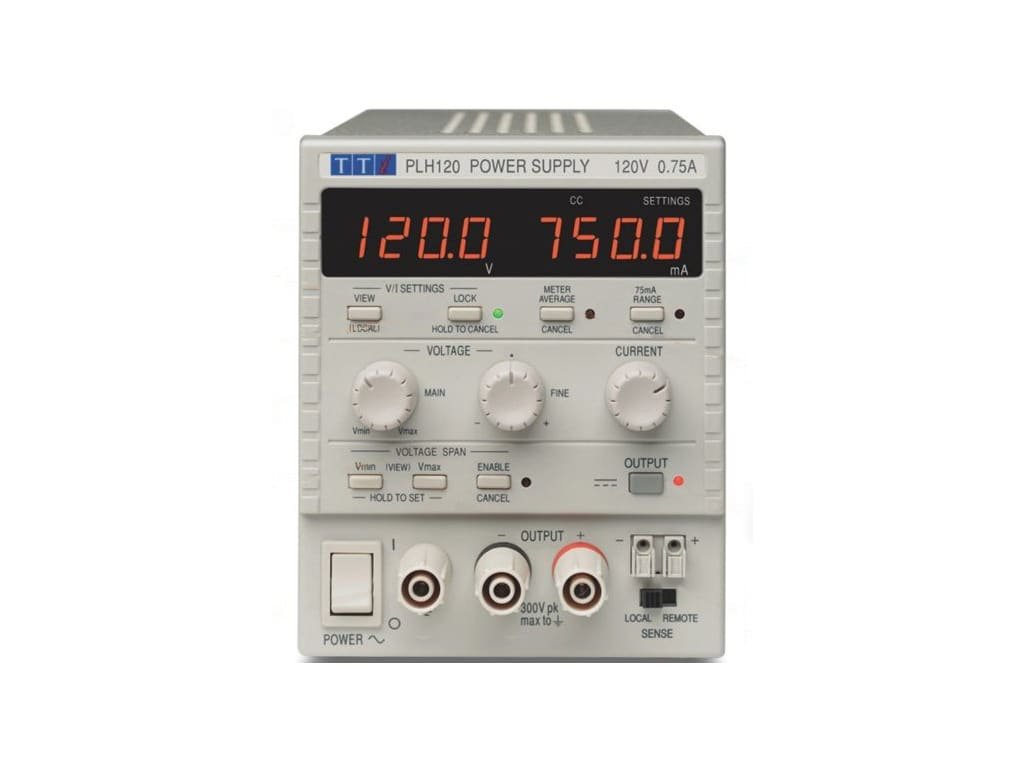

Aim TTi PLH120 | Higher Voltage Linear Regulated DC Bench Power Supply | Single 0-120V/0-0.75A

Name: Aim TTi PLH120 | Higher Voltage Linear Regulated DC Bench Power Supply | Single 0-120V/0-0.75A
Brand: Aim Tti
SKU: PLH120
Availability: InStock

Part Number : PLH120

The newest high-performance linear regulated DC power supply line from TTi is the PLH Series. It has a similar power output and is based on the New PL Series of lower voltage precision linear power supply (which deliver up to 60V). There are, however, some characteristics unique to the greater voltage. True analogue controls are combined with brand-new, digitally based convenience features in the PLH Series.

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

PLH & PLH-P Series

PLH is a development of the Aim-TTi PL series. The ultra compact form, high power density and smart analog controls of PL are incorporated in PLH, which also offers voltages up to 250V to cover applications beyond the capabilities of standard bench PSUs and into areas such as magnetics. PLH-P includes all the manual control features of PLH but offers also full remote control and read-back for bench and system applications using RS-232, USB and Ethernet (LAN/LXI).

Input power 280VA maximum
Low output noise and fast transient recovery
High power density - up to 94W from a quarter-rack, 3U sized casing
Unusually small bench footprint and, for rack-mount applications, up to 4 units can be mounted into a single slot
Exceptional line and load regulation, easy-switch remote sense
High accuracy 4-digit fixed-resolution meters, low current range, current meter averaging
Quick and intuitive adjustment of voltage and current
Unique S-Lock function digitally locks voltage and current settings at the touch of a button
Unique V-Span function enables the full 300Â° rotation of the voltage control to cover any voltage range
DC output switch enables voltage and current to be set up before connecting the load
Operating temperature range +5ÂºC â†’ +40ÂºC, 20% â†’ 80% RH
Storage temperature range -40ÂºC â†’ +70ÂºC
Suitable for indoor use at altitudes up to 2000m, Pollution Degree 2
Intelligent variable-speed low-noise fan assists convection cooling

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and (PLH-P only) CD containing driver software

Aim-TTi Series PL Bench Power Supply, IEC 320 Input Connector, 90W Power Rating - PLH120

This precision bench power supply by Aim-TTi is a precision DC power supply that offers high performance in a compact design. With digital controls and analogue stability, it provides users with accurate voltage and current outputs for various applications. Its linear regulation ensures low output noise and fast recovery times, making it ideal for sensitive environments.

Features & Benefits

â€¢ Digital controls with analogue stability
â€¢ Ultra-compact design for minimal bench space
â€¢ High power density for efficient use
â€¢ Low output noise and fast transient response
â€¢ Voltage span control for precise voltage adjustment
â€¢ Analogue remote control for easy parallel connection
â€¢ Enhanced safety features for protection
â€¢ Various interfaces including RS-232, USB, and LAN

Applications

â€¢ Ideal for laboratory testing and research applications
â€¢ Suitable for electrical engineering projects
â€¢ Essential for electronic circuit design and testing
â€¢ Beneficial in educational institutions for teaching purposes

Can it be used for sensitive electronic components?

Yes, it is suitable for use with sensitive electronic components.

Will it provide precise voltage output?

The power supply offers accurate voltage and current outputs for reliable performance.

Is it user-friendly for beginners?

Yes, the power supply comes with digital controls and analogue stability for easy operation.

Can it be used in educational settings?

The bench power supply is ideal for educational institutions for teaching purposes.

Is it suitable for circuit testing?

Yes, it is reliable for electronic circuit design and testing in various applications.

Operating Temperature	+5oC to +40oC, 20% to 80% RH
Storage Temperature	-40oC to + 70oC
Voltage	230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II
Weight	4.9kg

Low current range; current meter averaging
Lockable voltage and current settings (using S-Lock)
Connect via safety binding-post terminals
Dc output switch - check your settings before applying them;
View settings button - check and adjust limits at any time
PLH120 Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
Up to 94 watts from an ultra-compact case size
Exceptional line and load regulation
High accuracy four digit fixed-resolution meters
Easy-switch remote sense
