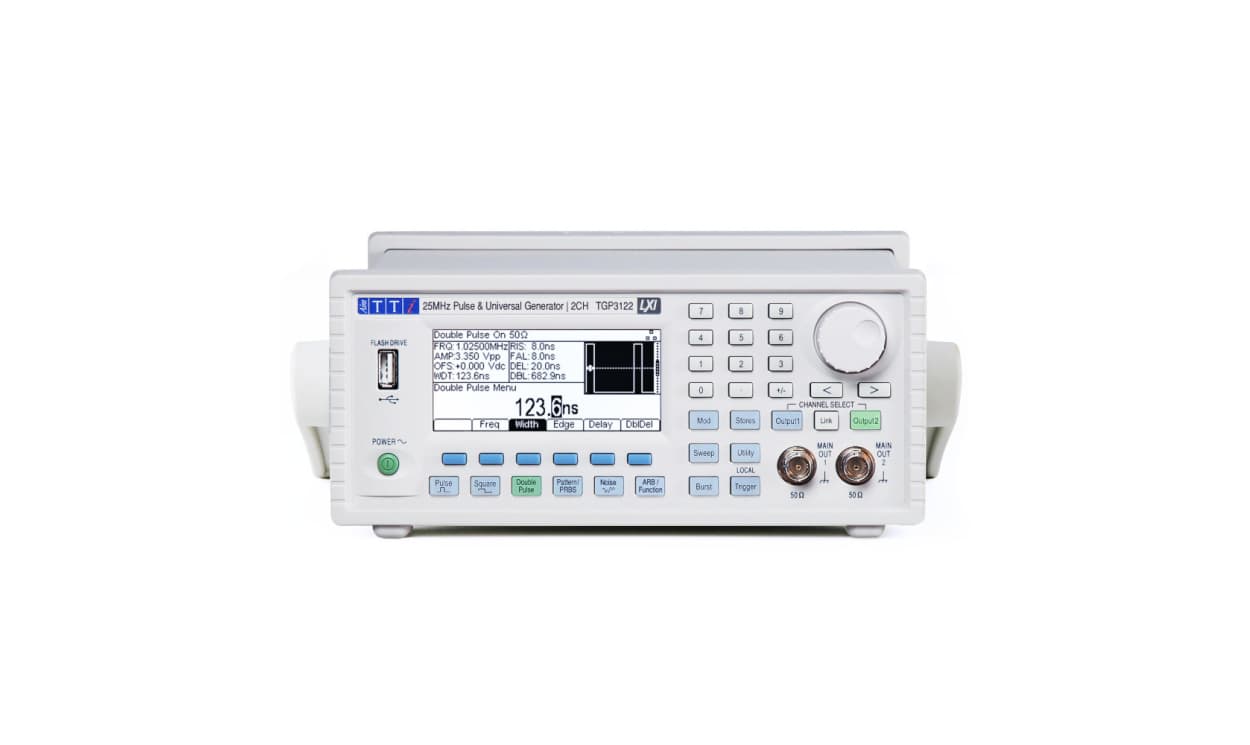

Aim-TTi TGP3122 | Pulse and Universal Generator | 25MHz, Dual Channel

Name: Aim-TTi TGP3122 | Pulse and Universal Generator | 25MHz, Dual Channel
Brand: Aim Tti
SKU: TGP3122
Availability: InStock

Part Number : TGP3122

TGP3122 is the two-channel 25MHz model in the Aim-TTi TGP3100 series. Each channel offers true pulse generation with independently variable rise and fall times, pulse modulations and burst or gated triggering, so engineers can create related timing signals for logic, power-switching and interface testing.

Key features

Two channels, pulses from 1mHz to 25MHz
Independently variable rise and fall from 8ns
Pulse, double pulse, pulse pattern and PRBS waveforms
Pulse modulations including AM, FM, PM, FSK, BPSK, PWM and PDM
Triggered burst or gated operation
USB and LXI LAN; GPIB optional

Availability: low stock

Detailed Description
Specifications
Downloads

Aim-TTi Pulse Generator, 10 kO Input Impedance, 2 Channels - TGP3122

This pulse generator by Aim-TTi offers precise and adjustable output amplitude, making it ideal for a wide range of applications across different industries. It features a compact bench-top design and advanced double pulse capabilities, ensuring accurate waveform generation for various testing requirements. With a focus on reliability and performance, this generator is a valuable tool for professionals seeking high-quality waveform generation solutions.

Features & Benefits

• The output amplitude can be adjusted to precisely control the strength of the generated waveforms
• This device is capable of producing two identical pulses in each cycle, with adjustable delays between them
• The feature of Function/Arbitrary Waveform Generation offers the flexibility to generate a wide variety of waveforms for different applications
• Various modulation options are provided for adjusting the amplitude, frequency, and phase of the waveforms
• It covers a wide frequency range, making it suitable for testing in various scenarios
• Low jitter operation is ensured to maintain accurate waveform timings

Applications

• Ideal for stress testing and signal characterisation in electronic designs
• Can be used for simulating clock frequencies with glitch-free performance
• Enables the creation of custom data patterns for testing serial communication systems
• Useful for conditioning pulse signals in various electronic applications

Can it generate custom pulse patterns?

Yes, it is capable of generating custom pulse patterns, allowing users to create specific waveforms tailored to their testing needs.

Will it support external modulation sources?

Yes, it supports external modulation sources, providing flexibility for users to integrate additional modulation capabilities into their testing setups.

Is it compatible with common LabVIEW software?

Yes, it is compatible with common LabVIEW software, facilitating seamless integration and control for users familiar with LabVIEW environments.

Will it provide precise amplitude control for output waveforms?

Yes, it offers precise amplitude control for output waveforms, ensuring accuracy and consistency in signal generation for various testing applications.

Part Number	TGP3122
Brand	Aim-TTi
Channels	2
Pulse Frequency	1 mHz to 25 MHz
Min Rise Time	8 ns
Timing Resolution	100 ps or 11 digits
Output	20 V pk-pk into 50 Ohm (unmatched)
Arbitrary	800 MS/s, 16-bit

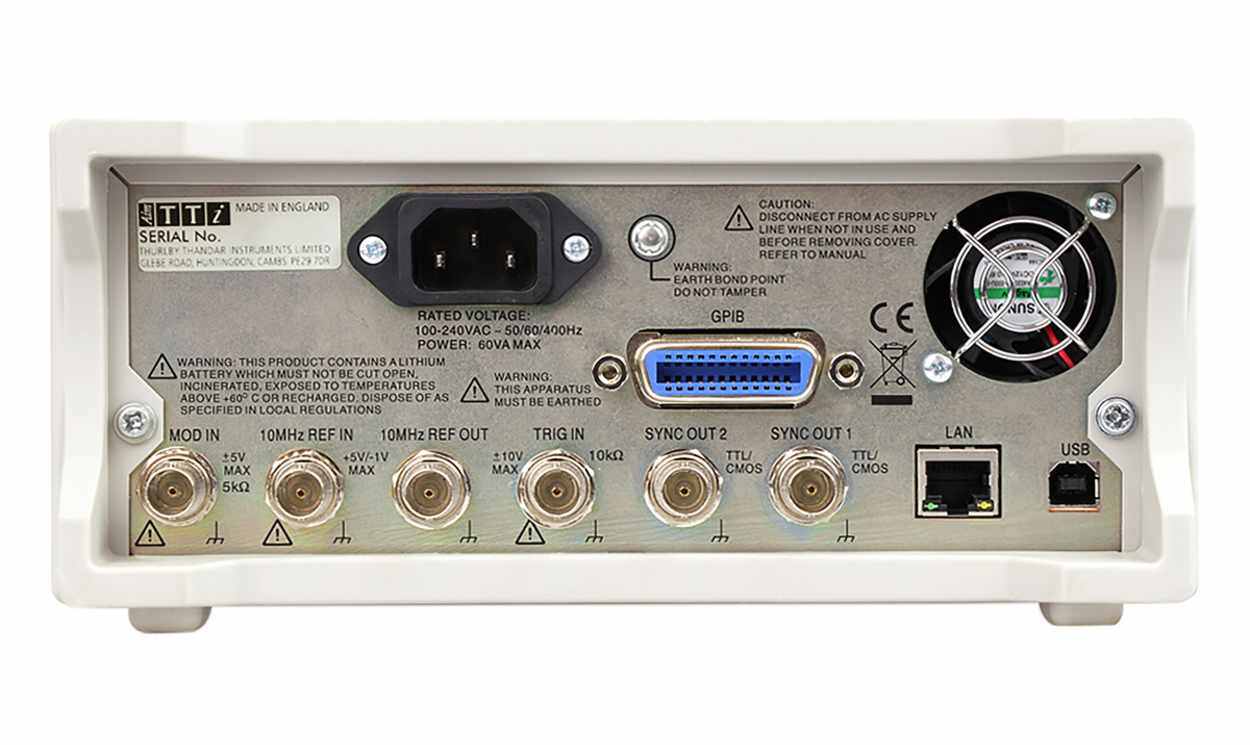

Interfaces	USB, LAN (LXI)
GPIB	Optional
