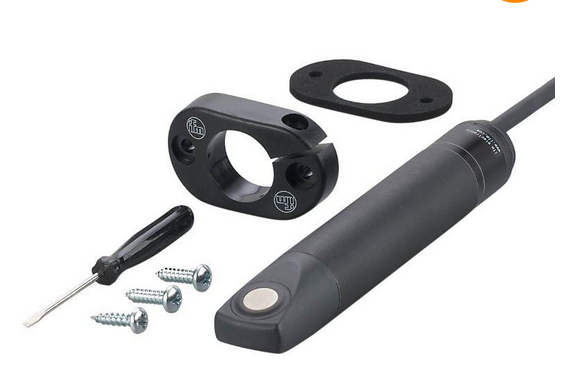

Airflow monitor ifm electronic SL0101
The SL0101 compact flow monitor from ifm ensures the optimum air flow thanks to easy setting in a range from 100-1,000 cm/s via potentiometer. The immersion depth into the duct can be flexibly varied via the supplied mounting clamp. Titan sensing faces ensure reliable operation, even with aggressive air, at a medium temperature from -10-50 °C. The SL0101 airflow monitor is available in the electrical design 80-250 V AC/DC with a 2 m PUR/PVC connection cable. Typically the airflow monitor is used for airflow monitoring in ventilation systems and/or suction operations.
- Specifications
- Features
- Downloads
| Ambient temperature | -10 °C to 50 °C |
| Material | housing: PBT; sensor surface: titanium |
| Protection | IP 65 |
| Reverse polarity protection | no |
| Short-circuit protection | no |
| Weight | 208g |
- Reliable airflow monitoring
- For use in ventilation systems in building automation
- User-friendly setting of the requested immersion depth of the sensor
- Intuitive setting of the switch point via potentiometer
- Signal output via potential-free relay contacts
