Part Number : 32000001

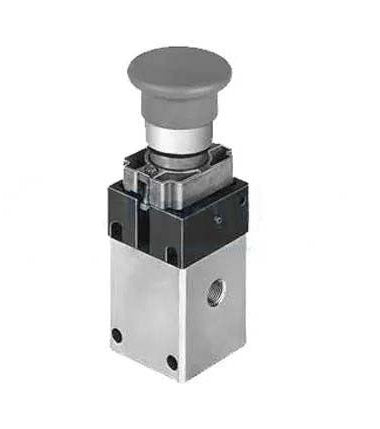

Designed for panel mounting, the ASCO JOUCOMATIC series 320 manually driven pilot valve is available in 22m or 30mm (G1/8) diameters. A range of pilot valves are available in Series 320 to accommodate the needs of various panels. The pilot valve's minimal actuation force and snap-action operation make the series affordable and long-lasting.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Actuation	Valve: Lever
Ambiant temperature	10 to 40 °C
Body Material	Light Alloy
Functions	3/2 Normally Closed
Operating pressure	2 to 10 bar
Port Size	G 1/8
Product Type	Pneumatic Valve
Size	Orifice: 4mm
Temperature	Fluid: 10 to 40 °C
Weight	0.27 kg

To enable in-line plumbing, all NPT connections are located in the valve body.
There is no need for a minimum operational pressure differential.
Both stainless steel and brass constructions are available.
Possibly can be mounted in any orientation.
In dry air or gas applications, the long-life version prolongs life by up to 20 million cycles by removing metal-to-metal contact. handles continuous energization or fast cycling with ease.
The harsh environment type provides rapid valve and actuator shutdown together with reduced power consumption. The valves are approved by ATEX, IIECEx, UL, and CSA.
The RedHat Next-Generation model has low-power operation and voltage ranging. Class I, Division 2 coils are found in valves.
