ASCO 400727-185, Series 552/553 24 V dc Solenoid Valve Coil

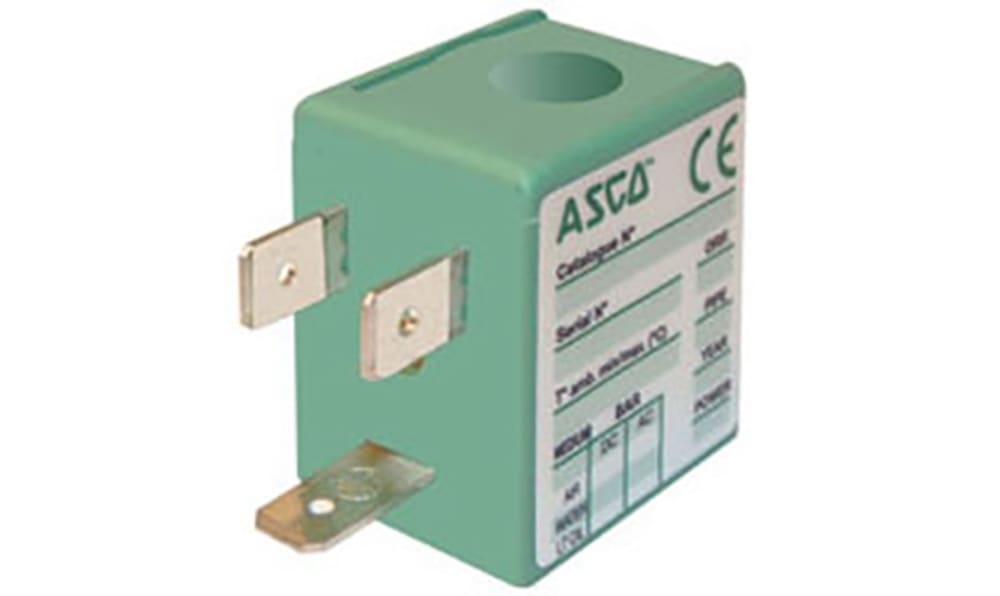

Name: ASCO 400727-185, Series 552/553 24 V dc Solenoid Valve Coil
Brand: Asco
SKU: 400727-185
Availability: OutOfStock

Part Number : 400727-185

Availability: Sold out

Detailed Description
Specifications

CM25 coils For 107 series solenoid valves

CM25 coils for 107 series solenoid valves.
Magnetic heads.
Wire lead with earth bonding.

3 Way Inert Gases and Fluid Valves

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and this is described on the right hand side of the diagram, see the typical schematic diagram below.,The 3//2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2//2-way valves as two-way.,The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications will indicate the appropriate connections and pressure capabilities should an alternative circuit function be required.
