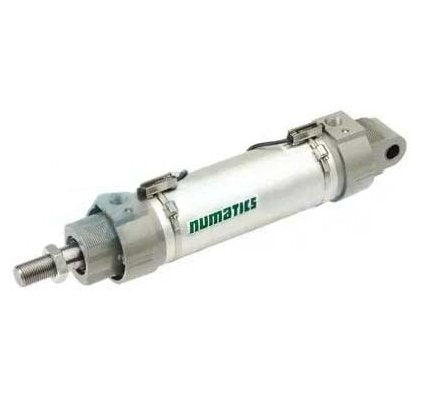

ASCO 43800093 | Isoclair Round Cylinder | Series 438 | Bore 40mm | Stroke 200mm
Magnetic position detectors are also included with the double-acting, isoclair round cylinders of the ASCO JOUCOMATIC series 438, which have elastic and pneumatic cushioning. For these kinds of cylinders, filtered, lubricated or unlubricated media like air or neutral gas are advised. The piston seal is composed of polyurethane (PUR), while the barrel is composed of a strong anodised aluminium alloy for endurance.
- Specifications
- Features
- Downloads
| Ambient temperature | - 10°C to + 70°C |
| Bore | 40 mm |
| Detection | Equipped for magnetic position detectors |
| Fluid | Air or neutral gas, filtered, lubricated or not |
| Functions | Double Acting |
| Material | Aluminium |
| Operating pressure | 10 bar max |
| Series | 438 |
| Stroke | 200 mm |
| Type | Isoclair Round Cylinder |
- Compact and Lightweight: Designed with a round cylinder profile, ideal for applications with space constraints.
- Bore Size of 40mm: Provides efficient power output for moderate force requirements.
- Stroke Length of 200mm: Offers precise and consistent linear movement for a wide range of applications.
- Durable Construction: Built to withstand demanding industrial environments with high-quality materials for long-term reliability.
