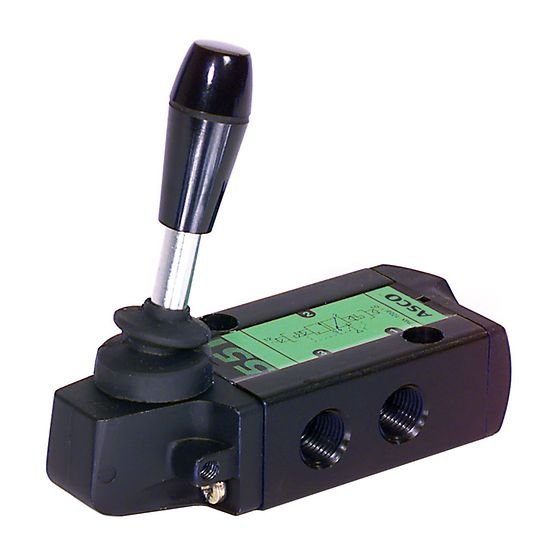

ASCO 55102084 | Spool Valve | Valve Type 3/2 Way Mechanical Operated

Name: ASCO 55102084 | Spool Valve | Valve Type 3/2 Way Mechanical Operated
Brand: Asco
SKU: 55102084
Availability: InStock

Part Number : 55102084

The port size of the ASCO JOUCOMATIC series 550 mechanically operated tiny spool valves is G1/8. Usually, the tiny spool valves are utilised for lubricating, filtering, and air and neutral gas applications. The maximum operational pressure differential for the valves is 10 bar. Anodised light alloy makes up the body, which is sealed with nitrile (NBR).

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Flow Coefficient	From 0.5 Cv to 1.0 Cv
Functions	3 way - 3/2 Normally Closed
Material	Brass
Port Size	1/4 "in
Port Type	NPTF
PRESSURE	0 to 10 bar
Series	551
Temperature	-60°C to 80°C
Type	Spool Valve
Voltage	24V AC

Mounting Options: Threaded for pipe mounting or NAMUR interface for direct actuator connection (VDI/VDE 3845).
Material Options: Valve body available in brass, aluminium, or 316L stainless steel for durability.
Explosion-Proof and Waterproof Solenoids: Available for hazardous environments, including ATEX, IEC EX, NEPSI, and more.
Pipeable Exhaust Ports: Offer superior protection against harsh conditions.
Corrosion Protection: Integral breather block vents exhaust to actuator's spring side.
Orientation Flexibility: Single- and dual-solenoid designs mount in any orientation.
Enhanced Protection: Ports on the same side for better water and dust protection.
