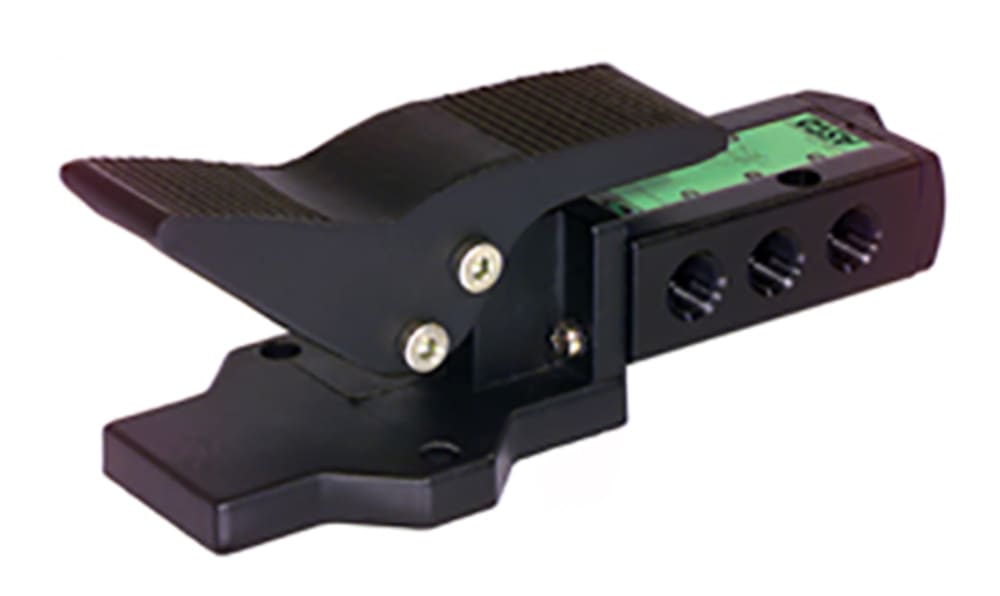

ASCO 55102094, Pedal 5/2 Pneumatic Manual Control Valve 551 Series, G 1/4, 1/4in, III B
Part No. 55102094
The ASCO 55102094 is a Series 551 pedal-operated 5/2 pneumatic manual control valve with G 1/4 ports. It provides direct, reliable manual control of double-acting pneumatic cylinders and pilot circuits while allowing operators to keep both hands free. Genuine ASCO valve, supplied in the UAE by General Tech Services LLC, with free UAE-wide shipping. Request a quote in under a minute - call +971 6 543 6933.
The ASCO 55102094 uses a pedal operator for convenient foot-operated pneumatic control. Its 5/2 configuration provides two outlets for controlling a double-acting cylinder in both directions, making it suitable for manual machines, workstations and pneumatic circuits where hands-free operation is useful.
The Series 551 manual valve range uses a common G 1/4 body with different operator and circuit configurations. This allows manual pneumatic controls to be standardised across machinery while selecting the operator style required for each workstation.
Typical applications include workstations where both hands need to remain on the workpiece, double-acting cylinders on manual machines, manual override and machine set-up functions. Use clean, dry, filtered compressed air for reliable pneumatic operation.
Ready to order the ASCO 55102094? Speak to our team. Call +971 6 543 6933
Key Benefits
-
Pedal operator for hands-free pneumatic control
-
5/2 valve function for double-acting cylinders
-
G 1/4 ports for standard pneumatic fittings
-
No electrical supply required
-
Suitable for manual machines and workstations
-
Useful for manual override and machine set-up
-
Genuine ASCO valve supplied by General Tech Services LLC
-
Free UAE-wide shipping on genuine ASCO stock
Who This Product Is Best For
-
Workstations where both hands need to remain on the workpiece
-
Machines using double-acting pneumatic cylinders
-
Manual pneumatic machines requiring foot-operated control
-
Manual override and machine set-up applications
-
Operators requiring convenient hands-free valve operation
How to Install & Use It
-
Confirm that the 5/2 valve function and pedal operator suit your pneumatic circuit.
-
Mount the valve securely where the pedal can be operated safely and comfortably.
-
Connect the supply, outlet and exhaust ports using suitable G 1/4 fittings as marked on the valve.
-
Use clean, dry, filtered compressed air for operation.
-
Test the pedal and cylinder movement with the circuit depressurised first, then verify operation under normal air pressure.
Frequently Asked Questions
What does the ASCO 55102094 do?
It is a pedal-operated 5/2 pneumatic manual control valve for directly controlling pneumatic circuits, including double-acting cylinders.
What does 5/2 mean?
A 5/2 valve has five ports and two positions, providing a supply, two working outlets and two exhaust paths for directional control of a double-acting cylinder.
What port size does the ASCO 55102094 use?
The valve has G 1/4 ports.
Does the ASCO 55102094 require electrical power?
No. It is manually operated by a pedal and does not require an electrical supply.
Why use a pedal-operated pneumatic valve?
A pedal operator allows the user to control the pneumatic circuit with their foot, leaving both hands available for handling a workpiece or performing other machine operations.
How do I choose the ASCO 55102094 or another Series 551 valve?
Choose the valve based on the required function, port size, operator type and operating conditions. Send your circuit requirements and valve part number to General Tech Services LLC for compatibility confirmation.
What air quality does it need?
Use clean, dry, filtered compressed air. Proper air preparation helps protect seals and maintain consistent pneumatic operation.
Can you supply matching ASCO parts in the same order?
Yes. General Tech Services LLC supplies ASCO cylinders, guiding units, air preparation units, manual valves, sensors and quick exhaust valves. Share your application requirements and the team can quote the relevant components together.
What details should I send with a quote request?
Provide the part number, required quantity and application details such as pressure, flow, pneumatic circuit requirements and operating environment. This helps confirm the correct ASCO variant and provide pricing and lead-time information.
Is this a genuine ASCO valve?
General Tech Services supplies original ASCO valves in the UAE with technical support.
Is UAE-wide shipping available?
Yes. Genuine ASCO stock is supplied with free UAE-wide shipping.
How do I get a price and lead time?
Pricing is quote-based. Call General Tech Services LLC on +971 6 543 6933 or submit the Request a Quote form.
