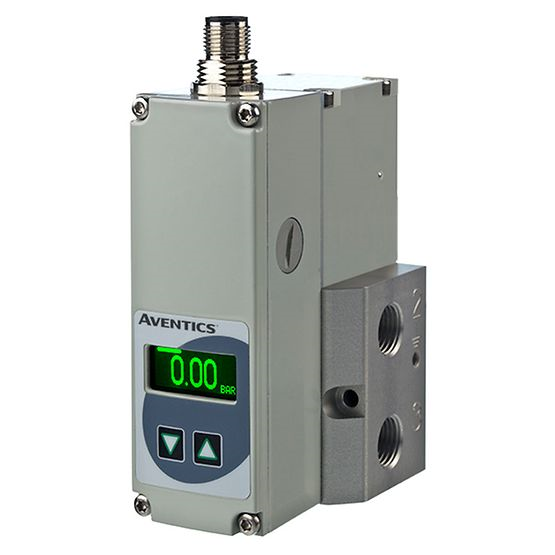

ASCO AVENTICS G617A60010A0010 | Sentronic LP Low-Power Proportional Pressure Control Valve
For applications requiring pressure management, the AVENTICS Series 617 Sentronic LP (Low Power) is a family of highly effective and reasonably priced proportional valves with digital control. Its modular form is simple to operate and it has a tiny footprint. With the use of supplementary Data Acquisition Software (DaS) and a PC connection, valve control loop parameters can be tailored for a particular application. The valve has a fast response time, little power consumption (<4 W), and integrated IO-Link communication capabilities.
- Specifications
- Features
- Downloads
| Actuation | Proportional |
| Body Material | Aluminum |
| Flow Characteristic | 0.43 to 4.8 Kv, 0.5 Cv to 6 Cv |
| Frequency (Hz) | 50/60 Hz |
| Functions | 3 way - 3/2 Normally Closed |
| Medium | Air, Inert Gases, Natural Gas; Oxygen |
| Port Size | 1/4�, 3/8�, 1/2� |
| Port Type | Port TypeG ISO228/1-G BSPP, NPTF, Flange |
| Standards | CE, EAC, IP65 |
| Voltage | 24 VDC |
- air pilot activation via solenoid.
- Last pressure held before power was lost.
- digital control and communication.
- Data acquisition software makes it simple to modify control parameters.
- An optional display allows for quick configuration and setup.
- IO-Link communication capabilities integrated.
- There are models with vacuum service and pressure up to 10bar (145 psi).
