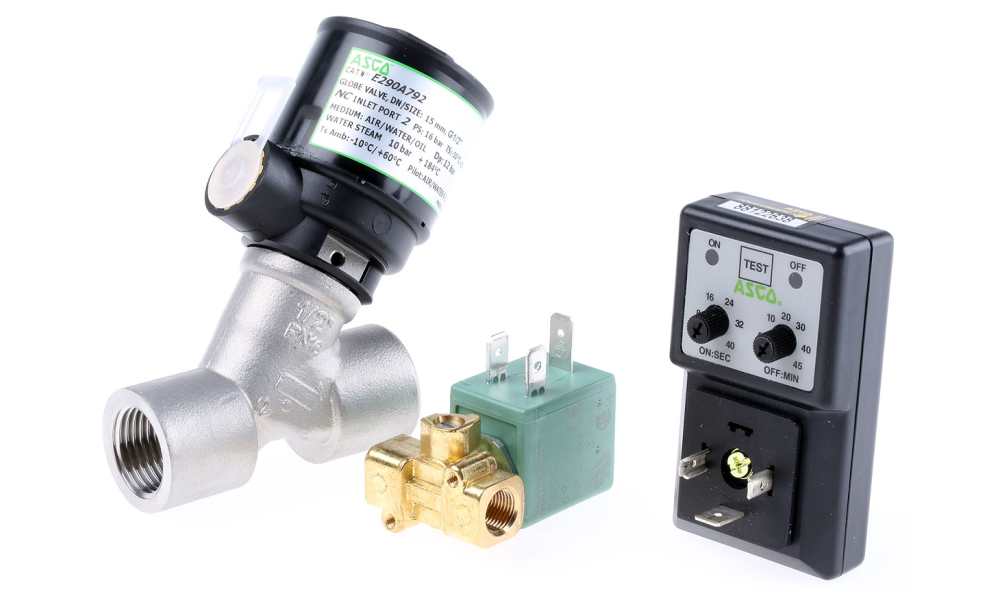

ASCO CDVAE290A792, Drain type Pneumatic Actuated Valve, G 1/2in, 12 bar
Part No. CDVAE290A792
The ASCO CDVAE290A792 is a 2/2 normally closed condensate drain valve assembly with an adjustable electronic timer, featuring a G 1/2 inlet and rated to 12 bar. It is designed to automatically remove condensate from compressed-air systems without requiring manual draining. Genuine ASCO valve, supplied in the UAE by General Tech Services LLC. Request a quote in under a minute - call +971 6 543 6933.
The ASCO CDVAE290A792 is a Series 290 condensate drain valve assembly designed for automatic removal of accumulated water from receivers, after-coolers, filters and dryers. Its timer allows the drain cycle to be adjusted according to the amount of condensate produced, helping automate routine drainage.
The assembly uses a 32 mm pilot-operated piston valve with a G 1/2 inlet, G 1/4 outlet and integrated inlet filter. The electronic timer provides an adjustable on period of 2 to 40 seconds and an off period of 0.5 to 45 minutes. This allows the drainage interval to be configured for different compressed-air installations.
Practical features include status LEDs, a test button for manually triggering a drain cycle and a manual operator for commissioning and checks. The DIN plug connection is IP65 protected. The assembly is suitable for air, inert gas, water and oil, subject to confirming compatibility with the specific installation.
Ready to order the ASCO CDVAE290A792? Speak to our team. Call +971 6 543 6933
Key Benefits
-
Automatic condensate removal on an adjustable schedule
-
G 1/2 inlet and G 1/4 outlet connections
-
Adjustable on period from 2 to 40 seconds
-
Adjustable off period from 0.5 to 45 minutes
-
Integrated inlet filter helps protect the valve seat from debris
-
Test button for quick drainage checks
-
Manual operator for commissioning and maintenance checks
-
IP65 DIN plug connection with status LEDs
-
Rated to 12 bar for typical compressed-air systems
Who This Product Is Best For
-
Compressor rooms and compressed-air receivers
-
After-coolers and air-treatment equipment
-
Refrigerated and desiccant dryer drain points
-
Facility managers replacing manual drain cocks with automatic condensate drains
-
Industrial plants requiring scheduled condensate removal
How to Install & Use It
-
Confirm the available supply voltage and ensure the system pressure remains within the 12 bar rating.
-
Mount the drain valve at the lowest suitable drain point of the receiver, filter, dryer or other condensate collection point.
-
Connect the G 1/2 inlet and G 1/4 outlet correctly and wire the DIN plug according to the applicable electrical requirements.
-
Set the timer's on and off periods according to the condensate volume and drainage requirements.
-
Press the test button to confirm that the drain cycle operates correctly.
-
Monitor the system during initial operation and fine-tune the timer settings if required.
Frequently Asked Questions
What does the ASCO CDVAE290A792 do?
It automatically drains condensate from compressed-air systems using a timer-controlled 2/2 normally closed valve.
How do I set the drain timing?
The electronic timer allows the on period to be adjusted from 2 to 40 seconds and the off period from 0.5 to 45 minutes.
What pressure is the CDVAE290A792 rated for?
The valve assembly is rated for a maximum operating pressure of 12 bar.
Which voltages are available?
The CDV series is available in 24 and 48 V DC and 24, 48, 115 and 230 V AC configurations. Confirm the required supply voltage when ordering.
What are the connections on the CDVAE290A792?
The assembly has a G 1/2 inlet and G 1/4 outlet, with an integrated inlet filter.
What media can it handle?
The supplied product information lists air, inert gas, water and oil. Always confirm media compatibility with the specific installation and operating conditions.
How do I choose the CDVAE290A792 for my system?
Choose the condensate drain based on system pressure, connection size, condensate volume, required drain timing and available electrical supply. Send your system details and part number to General Tech Services LLC for compatibility confirmation.
Is this a genuine ASCO valve?
General Tech Services supplies original ASCO valves in the UAE with technical support.
Do you ship in the UAE?
Yes. General Tech Services supplies genuine ASCO products across the UAE. Contact the team for current shipping, pricing and lead-time information.
How do I get a price and lead time?
Pricing is quote-based. Call General Tech Services LLC on +971 6 543 6933 or submit the Request a Quote form.
