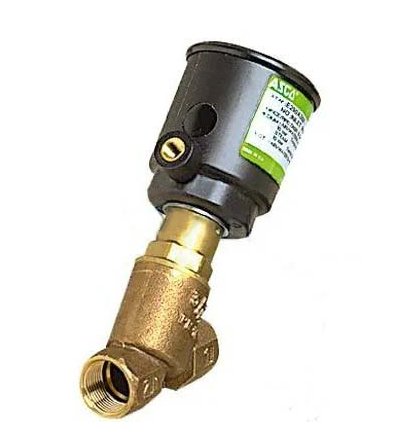

ASCO E290A133 | Pneumatic Valve | Valve Type 2-way
Remote control is available for the ASCO series E290 compact pressure-operated valves for neutral fluids. Because to the angle seat design, it has a high flow rate. The valves have an anti-waterhammer design (fluid entry beneath the disc) and are operated by pistons. The operator can be rotated 360 degrees, and the valves meet Article 3.3 of the Pressure Equipment Directive 97/23/EC. Product Reference for ASCO: E290A133
- Specifications
- Features
- Downloads
| Diameter | Operator: 63 mm |
| Flow Coefficient | KV: 4.9 m3/h |
| Flow Coefficient | KV: 82 l/min |
| Functions | 2/2 NO |
| Material | Body: Bronze |
| Material | Seal: NBR |
| Orifice | Size: 15 mm |
| Port | Connection: G1/2 |
| Series | E290 |
| Type | Pneumatic Valve |
| Working pressure max | 10 Bar |
| Working pressure min. | 0 |
- Compact valves with remote control
- The angled seat design results in high flow, and the operators are piston-type (50 or 63 mm dia.)
- Water entrance beneath the disc (anti-waterhammer design)
- The valves meet Pressure Equipment Directive 97/23/EC article 3.3; the operator can rotate 360 degrees.
