ASCO E290D3110SA0000, Angle Seat type Pneumatic Actuated Valve, G 3/8in to G 3/8in, 10 bar

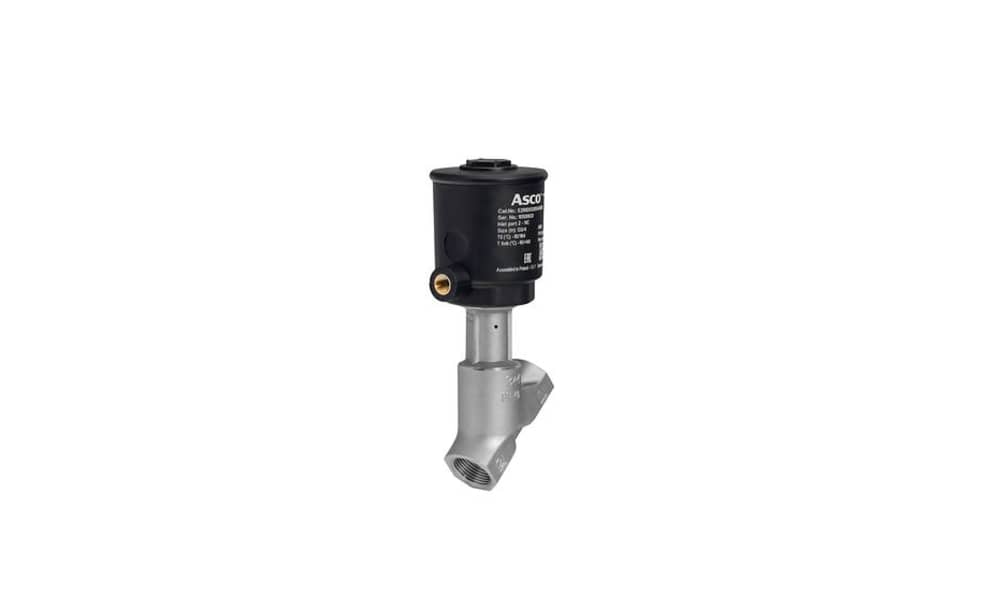

Name: ASCO E290D3110SA0000, Angle Seat type Pneumatic Actuated Valve, G 3/8in to G 3/8in, 10 bar
Brand: Asco
SKU: E290D3110SA0000
Availability: OutOfStock

Part Number : E290D3110SA0000

Availability: Sold out

Detailed Description
Specifications

The Asco Pneumatic Valve is a 2-way, pressure-operated valve featuring a durable stainless steel body and an actuator, ideal for industrial machines and manufacturing processes. It offers high reliability, long service life, and exceptional tight shutoff, with an adjustable actuator that enables 360° access to the pilot port for ease of installation and maintenance. Certified under the Pressure Equipment Directive 2014/68/EU, EN ISO 13849-1, and IEC 61508 Standard (SIL 2), this valve also complies with Reach, RoHS, and EAC directives, making it suitable for high-safety, critical applications in diverse industries.

Modular design provides exceptional flexibility
Large piloting orifice and low hysteresis creates fast cycle times
Anti-water hammer design and back pressure resistant
High performance
Maintenance-free actuator and stuffing box
Easy and fast maintenance without the need to remove valve body from pipework

Brand	Asco
Thread Size	3/8in
Valve Type	Angle Seat
Default Valve Position	NC
Thread Standard	G
Thread Standard 2	G
Thread Size 2	3/8in
Maximum Working Pressure	10 bar
