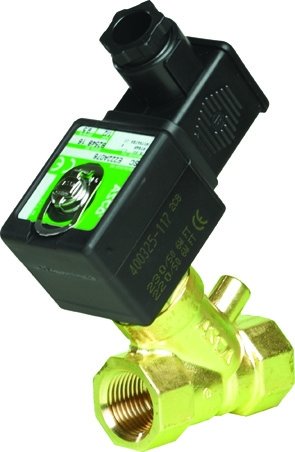

ASCO SCE222A076 | Solenoid Valve | Valve Type 2/2-Way
The Y-bodied shape of the ASCO series 222 pilot-operated steam solenoid valves allows for a high flow with comparatively small orifices. In order to provide the safe separation of electrical and wetted moving parts, the solenoid valves are built packless with a single deepdrawn stainless steel core tube.
- Specifications
- Features
- Downloads
| Material | Brass |
| Material | Seal: EPDM |
| Orifice | Size: 9.5 mm |
| Port | Connection: G3/8"in |
| Power | 6 W / 15.6 VA |
| Series | 222 |
| Type | Solenoid Valve |
| Voltage | 230V AC |
| Working pressure max | 10 Bar |
| Working pressure min. | 0.07 Bar |
- The solenoid valves function with a minimum ΔP of 0,07/0,15 bar.
- The Y-bodied valves offer a high flow with relatively small orifices.
- The solenoid valves are built packless with a single piece deepdrawn
- The solenoid valves have compact, forged brass bodies that reduce heat radiation loss, and stainless steel core tubes that provide the safe separation of electrical and wet moving parts. They also comply with all applicable EC directives.
