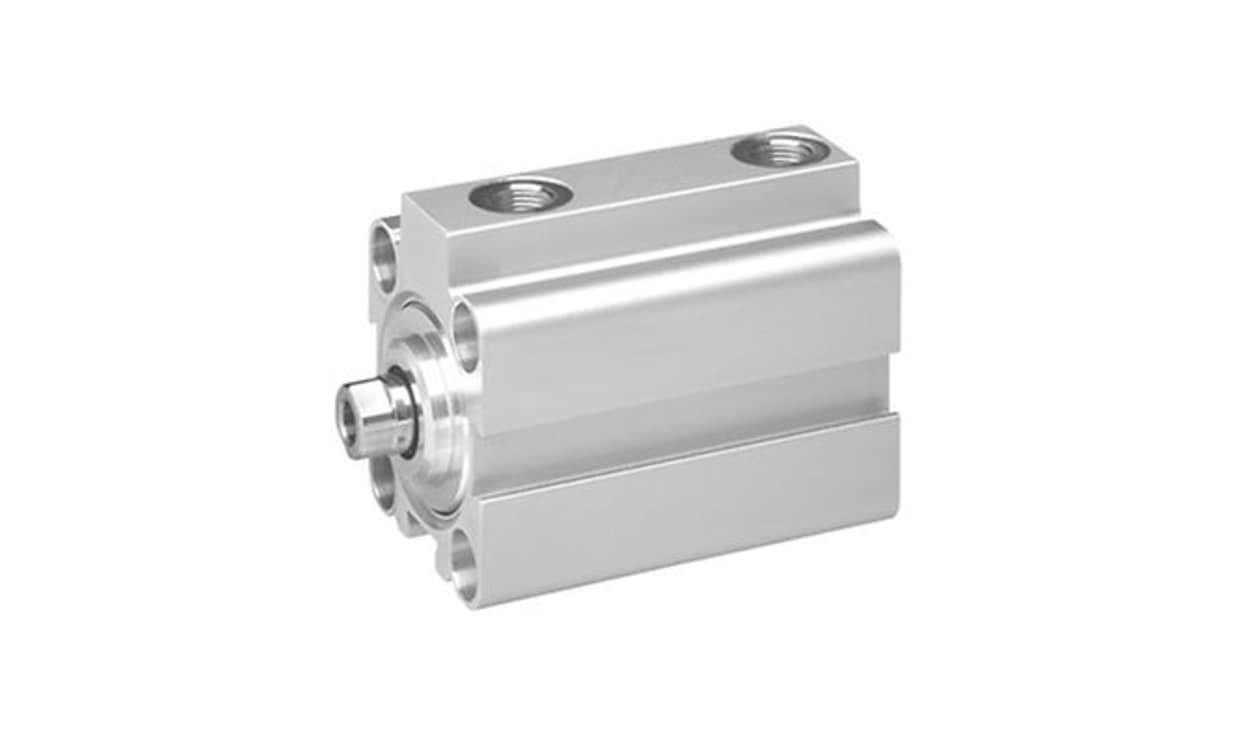

AVENTICS 0822010616 | Pneumatic Piston Rod Cylinder | 16 mm Bore, 40 mm Stroke, KHZ

Name: AVENTICS 0822010616 | Pneumatic Piston Rod Cylinder | 16 mm Bore, 40 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010616
Availability: InStock

Part Number : 0822010616

The AVENTICS 0822010616 is a double-acting KHZ piston rod cylinder with a 16 mm bore and 40 mm stroke. It connects through an M5 port and has a female piston rod thread.

Bore: 16 mm
Stroke: 40 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is expertly designed for applications requiring precision in restricted spaces. Its innovative construction harnesses double-acting functionality, ensuring reliable and efficient operation in various industrial settings. With a compact design, it offers high performance without compromising on integration ease. Crafted from robust materials, it delivers consistent functionality while adhering to industry standards, making it an ideal choice for machinery deployments. This cylinder is particularly noted for its elastic cushioning and magnetic piston, enhancing its responsiveness and durability. Furthermore, it operates effectively across a wide temperature range, assuring robust performance in challenging environments. The Series KHZ is not just a product

it’s a solution that enhances automation processes through reliability and efficiency.

Compact design ensures functionality in tight installation spaces
Double-acting principle maximises operational efficiency
Durable construction with industry-standard materials for longevity
Elastic cushioning improves impact absorption during operation
Integrated magnetic piston enhances precision and reliability
Wide operating temperature range accommodates diverse working conditions
Designed for easy installation and integration into existing machinery
Reliable performance with consistent outputs across various pressures

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010616
Stroke	40mm
Action	Double
Bore	16mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822010616 | Pneumatic Piston Rod Cylinder | 16 mm Bore, 40 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010616 Datasheet - 0822010616 A700000012572515
