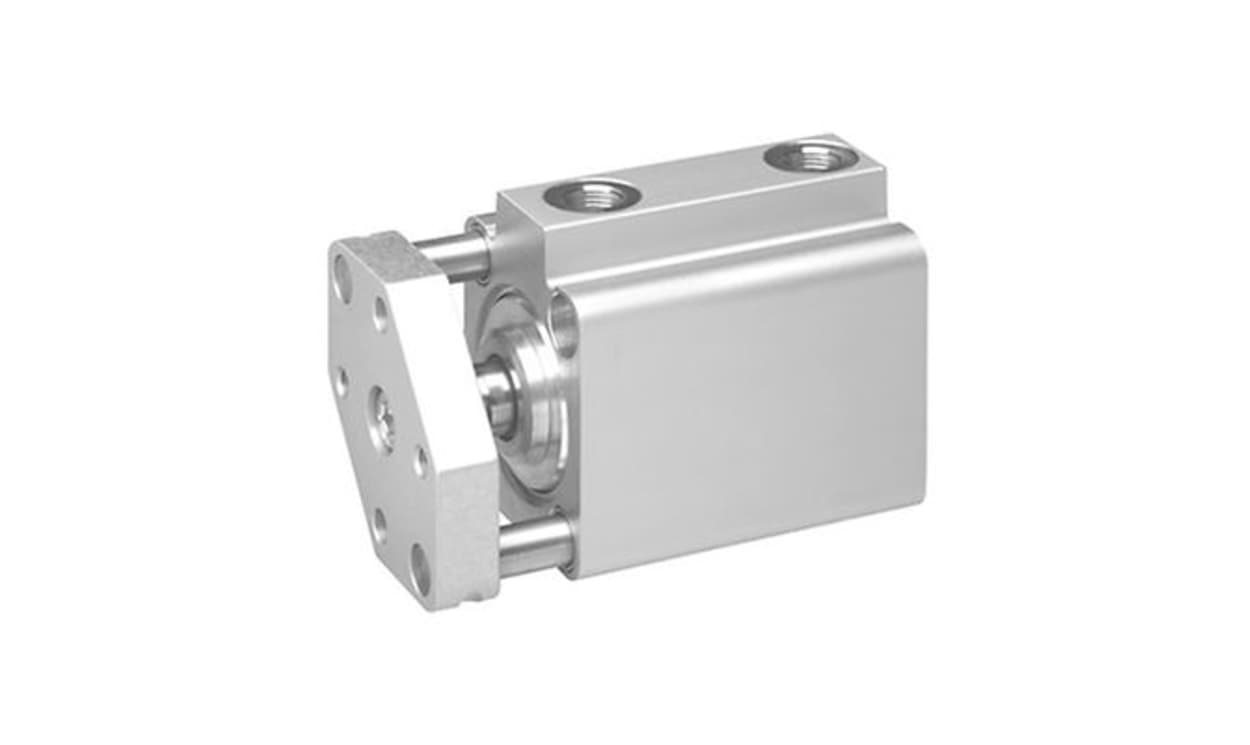

AVENTICS 0822010757 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 50 mm Stroke, G 1/8

Name: AVENTICS 0822010757 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 50 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010757
Availability: InStock

Part Number : 0822010757

Part number 0822010757 from AVENTICS pairs a 50 mm stroke with a 40 mm bore in the double-acting KHZ series, taking a G 1/8 pneumatic connection and specified for operating temperatures between -25 °C and +80 °C.

Bore 40 mm, stroke 50 mm
Double-acting operation, KHZ series
Port connection: G 1/8
Female piston rod thread
Elastic cushioning
Maximum operating pressure 10 bar

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is expertly designed to excel in compact installation spaces, making it a perfect companion for various industrial applications. Its innovative double-acting functional principle ensures maximum efficiency, while elastic cushioning guarantees smooth operation. This non-standard cylinder effectively balances performance and size, allowing for seamless integration into machinery. Crafted from high-quality materials such as stainless steel and aluminium, the Series KHZ offers exceptional durability. The product adheres to industry standards, ensuring reliability in diverse working environments while providing robust force outputs. This remarkable cylinder not only meets practical needs but also aligns with modern industrial expectations, making it an ideal choice for those seeking reliable, high-performance solutions.

Optimised for tight installation spaces, ensuring versatile use in machinery
Double-acting cylinder provides efficient performance, enhancing productivity
Elastic cushioning technology reduces shock loads, promoting longer service life
Constructed from premium materials for superior durability and reliability
Meets stringent industry standards for dependable operation in various environments
High force outputs cater to demanding applications, supporting operational efficiency
Simple integration due to standardised ports, facilitating hassle-free installation
Minimises maintenance needs with a robust design, reducing downtime

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010757
Stroke	50mm
Bore	40mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.06 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
Test Weight	0.285 kg

AVENTICS 0822010757 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 50 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010757 Datasheet - 0822010757 A700000012571650
