AVENTICS 0822010848 Pneumatic Piston Rod Cylinder - , 32mm Bore, 80mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010848 Pneumatic Piston Rod Cylinder - , 32mm Bore, 80mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010848
Availability: OutOfStock

Part Number : 0822010848

Availability: Sold out

Detailed Description
Specifications

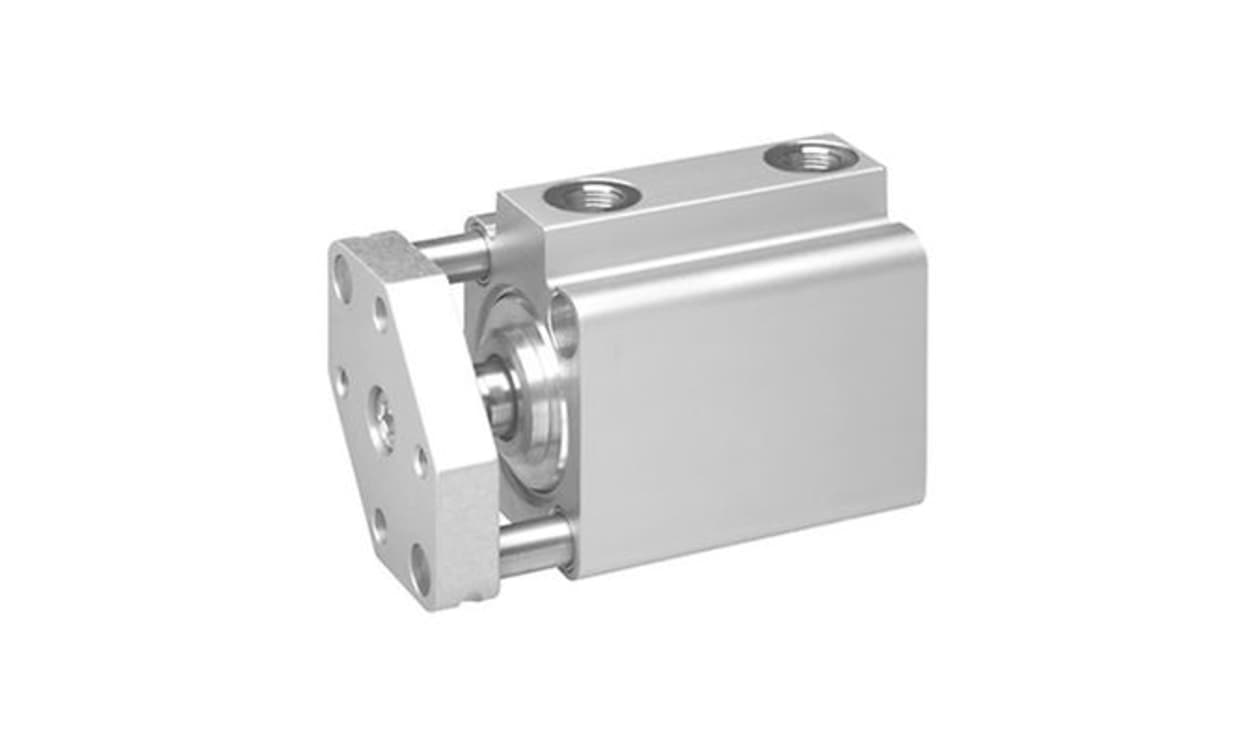

The Aventics short-stroke cylinder from the series KHZ represents the pinnacle of engineering innovation, designed specifically for applications requiring compact solutions without compromising performance. Engineered to fit into the tightest installation spaces, this cylinder ensures seamless integration into various machinery setups. Its double-acting functional principle offers versatility, while the elastic cushioning enhances operational safety and efficiency. With robust construction from materials such as aluminium and stainless steel, it is built to withstand rigorous industrial conditions, ensuring longevity and reliability. The series KHZ not only meets industry standards but also provides exceptional environmental resilience, making it an optimal choice for demanding applications. Whether in automation, packaging, or assembly, this cylinder proves indispensable for achieving precise control and powerful performance in confined environments.

Optimised for tight installation spaces to maximise design efficiency
Double-acting principle enables effective and reliable piston movement
Elastic cushioning for enhanced safety and reduced impact during operation
Robust aluminium and stainless steel construction ensures durability
Exceptional environmental resilience for consistent performance in varied conditions
Ideal for a range of industrial applications, from automation to assembly

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010848
Bore	32mm
Stroke	80mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
