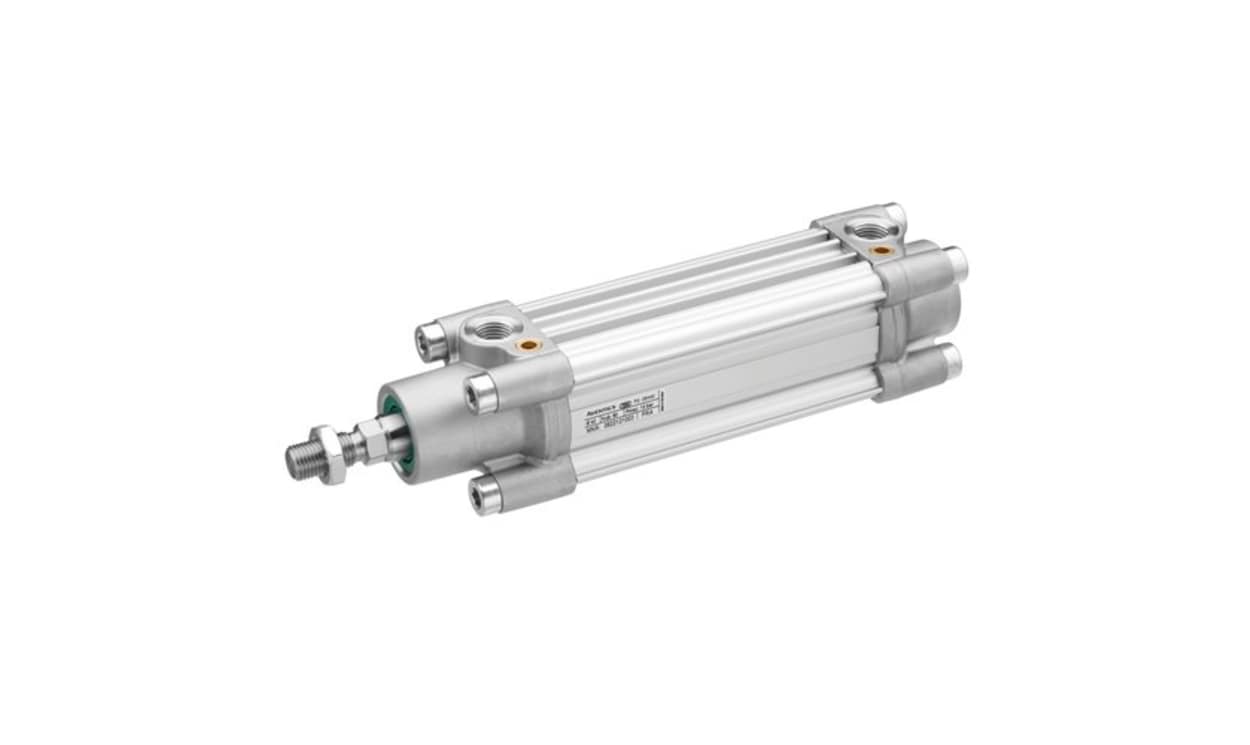

AVENTICS 0822120006 Pneumatic Piston Rod Cylinder - 32mm Bore, 160mm Stroke, PRA Series, Double Acting

Name: AVENTICS 0822120006 Pneumatic Piston Rod Cylinder - 32mm Bore, 160mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822120006
Availability: OutOfStock

Part Number : 0822120006

Availability: Sold out

Detailed Description
Specifications

PRA ISO Profile Cylinder

Pneumatic profile cylinders 32 - 125 mm diameters to ISO15552

Double Acting
Magnetic poston
Adjustable pneumatic cushioning
External piston rod thread

SerRexroth PRA ISO Profile Cylinder

Brand	AVENTICS
Manufacturer Series	PRA
Stroke	160mm
Action	Double
Bore	32mm
Port Connection	G 1/8
Cushioning Type	Rubber
Dimensions	254 x 46.5 x 46.5mm
Width	46.5mm
Height	46.5mm
Length	254mm
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
Weight	850g
